Hastelloy C276 Forged Flanges, (UNS N10276, 2.4819, Alloy C276) , C276 Pipe Flanges, C276 Steel Flanges, C276 Forging Flanges
Quick DetailsSize:1/2" to 60"Material:Alloy SteelStandard:ANSI,ASME,ISO,DIN,JIs,etc.,ANSI, ASME,DIN, JIS,MSS, API, BS, AWWA and GBPlace of Origin:ChinaModel Number:Hastelloy C276Brand Name:C&NStandard or Nonstandard:Standardcertificate:ISO SGSChemical Composition:Ni, Cr, Mo,Fe, etcfeat......
Send Inquiry
Product Description
Quick Details
Size: | 1/2" to 60" | Material: | Alloy Steel | Standard: | ANSI,ASME,ISO,DIN,JIs,etc.,ANSI, ASME,DIN, JIS,MSS, API, BS, AWWA and GB |
Place of Origin: | China | Model Number: | Hastelloy C276 | Brand Name: | C&N |
Standard or Nonstandard: | Standard | certificate: | ISO SGS | Chemical Composition: | Ni, Cr, Mo,Fe, etc |
feature: | corrosion resistance & high temperature | technique: | forging,heat treatment,CNC Machining, | price term: | FOB/CIF/CFR |
OEM&ODM: | acceptable | Payment: | T/T , L/C with deposit | 100%factory: | Yes |
Packaging & Delivery
Packaging Detail: | Wooden Box |
| Delivery Detail: | within 15-30 days |

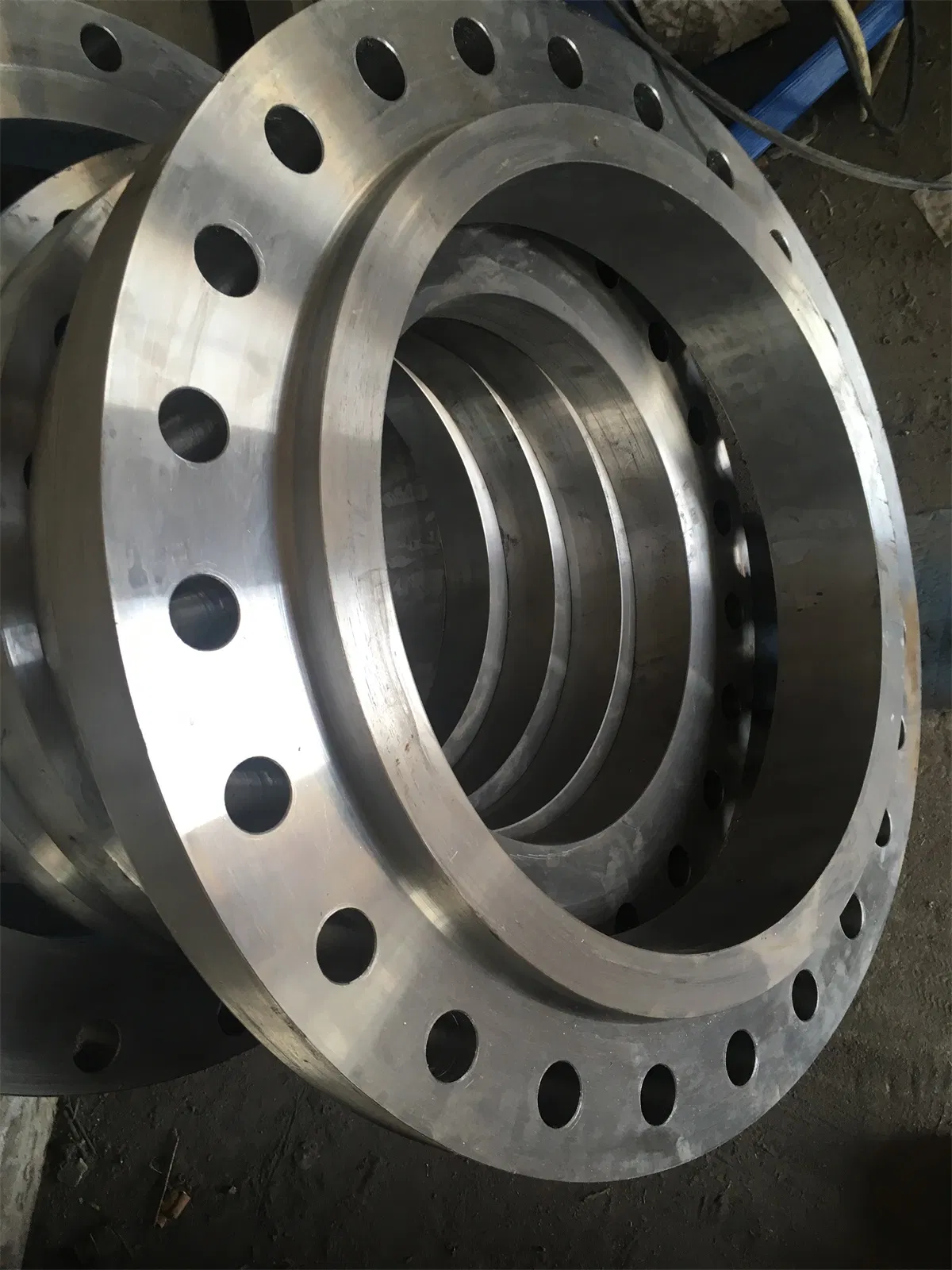

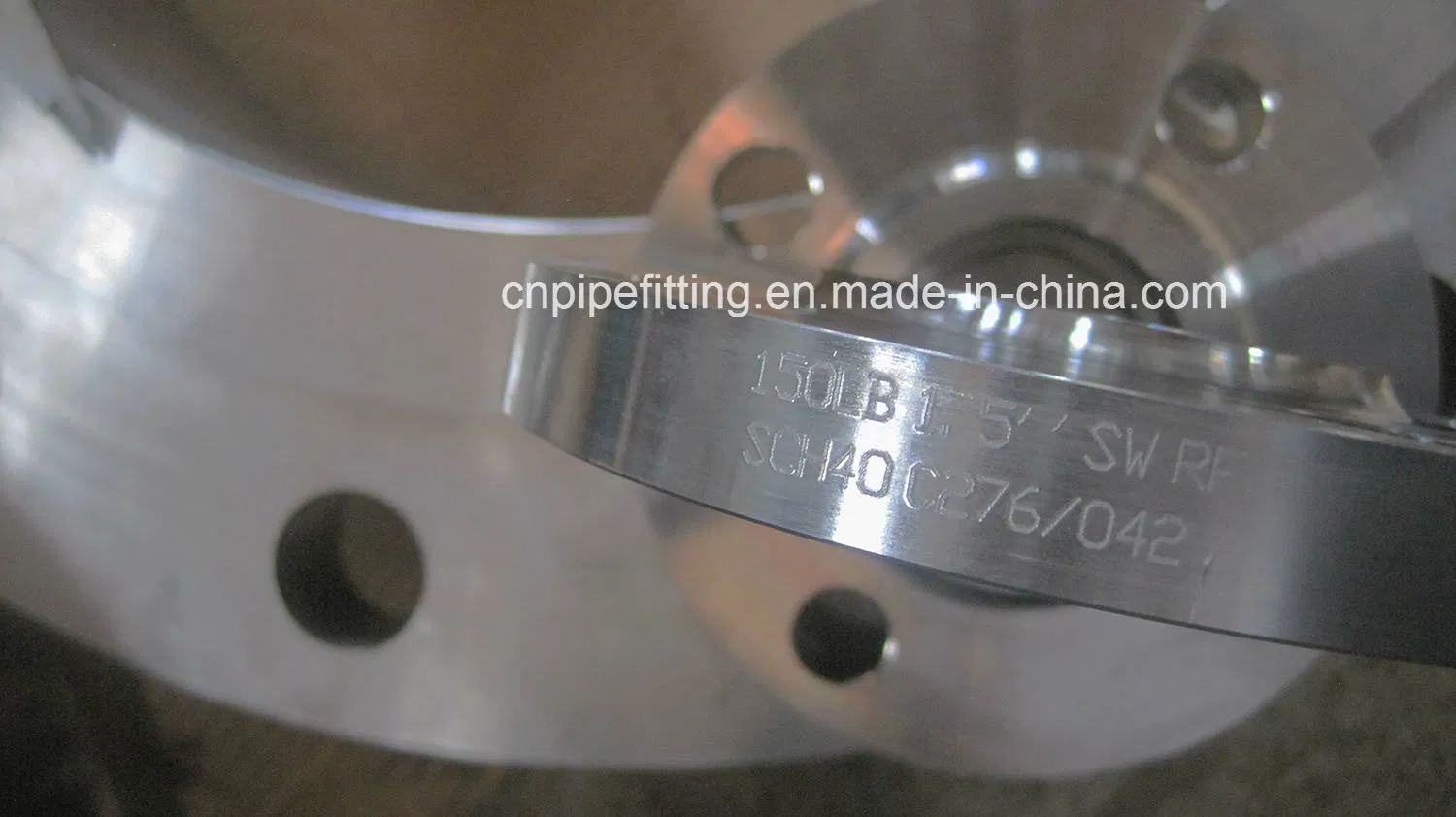

UNS N10276 nickel alloy hastelloy c276 forged flanges
Type: Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc.
Material Grade :
Hastelloy C276 UNS N10276
Hastelloy C276 / C-22 / C4 , hastelloy X / S, hastelloy B3 / B2, Hastelloy C2000 ; Hastelloy G-30 , Hastelloy G35,etc.
Nickel alloy, Cobalt base alloy, and Iron base alloy, stainless steel , Duplex&Super Duplex ,etc
Inconel , Incoloy , monel , stellite , etc.
Standard : ASME/ANSI B16.5 , B16.47A/B, MSS SP-44 , ISO7005-I , API605, DIN, JIS, BS1560-3.1
Pressure Class: 150#, 300#, 400 #, 600#, 900#, 1500# & 2500 #
Other products like valve seats / stems / caps / ball valves , pumps body / parts , alloy rod / bar , , alloy wire , alloy springs , fasteners/ screws , alloy pipes are available
Performance of hastelloy C276
Chemical Composition, %
Ni | Mo | Cr | Fe | W | Co | Mn | C |
|---|---|---|---|---|---|---|---|
Remainder | 15.0-17.0 | 14.5-16.5 | 4.0-7.0 | 3.0-4.5 | 2.5 max | 1.0 max | .01 max |
V | P | S | Si | ||||
.35 max | .04 max | .03 max | .08 max |
ASTM Specifications
Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
|---|---|---|---|---|---|---|---|---|
B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
