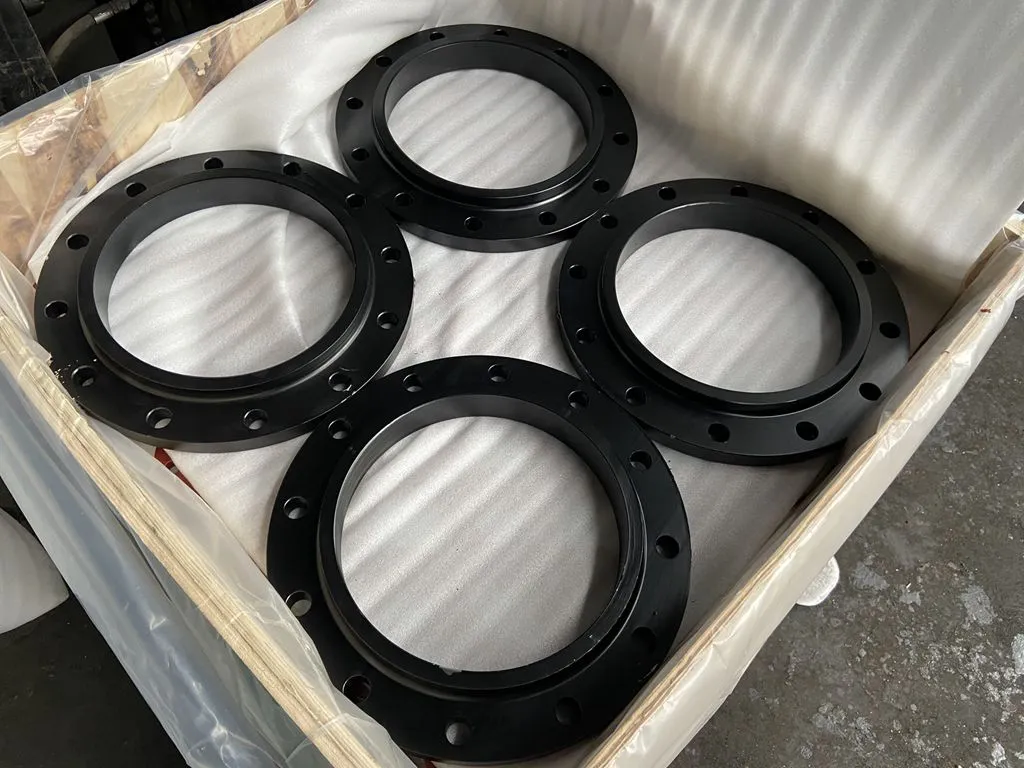

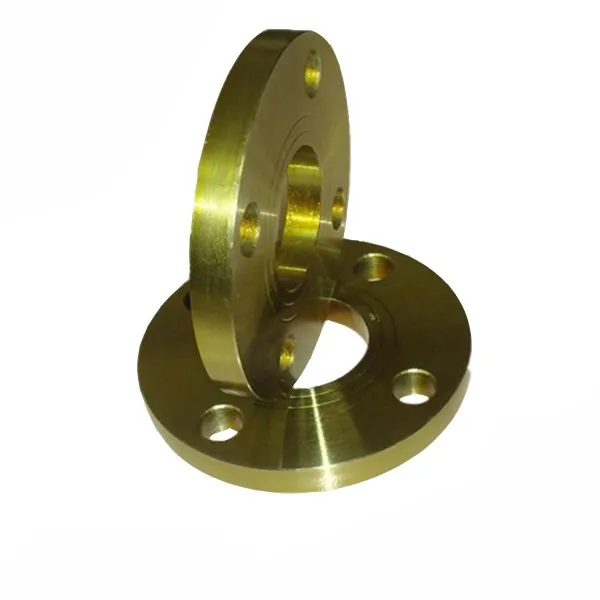

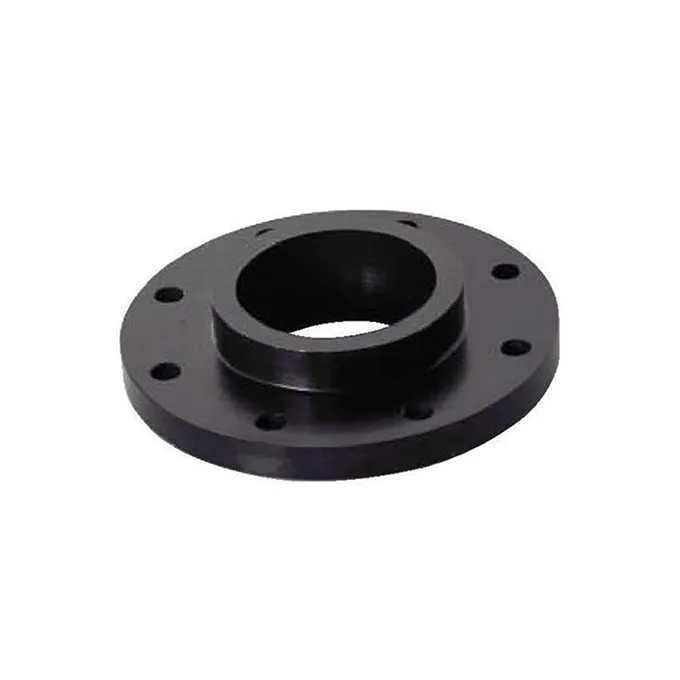

China DIN2627 P250gh C22.8 Pipe Fitting Slip on Flange

Product Description

DIN2627 P250gh C22.8 Pipe Fitting Slip On Flange

Size: 1/2"-72"
Material:
P250GH(C22.8)
ASTM A105/ A36
ASTM A694 F42/ 46/ 52/ 56/ 60/ 65/ 70
310/F304/304L/F316/F316L, F321, F347.
ASTM A350 LF2/ LF3

Standard: ANSI B16.5, B16.47, MSS SP-44, DIN2627, BS4504, JIS, etc

Pressure:
ANSI 150LBS-2500LBS,
DIN PN6-PN160,
JIS 5K-30K,
HG PN0.25-PN25, PN2.0-PN42.0

Flange Type:
Slip-on, Weld Neck, Socking Welding, Blind, Plate-type etc.

PL Flange

WN Flange

SO Flange

TH Flange

SW Flange

LJ Flange

BL Flange

Sealing Surface Type:
Raised Face, Full Face, Male&Female, Ring Joint Face, Taper Face, Taper Groove Face

Face type

RF(raised face)    M(male face)
FM(female face)      T(tongue face)
G(groove face)       RJ(ring joint face)etc.

Surface Treatment:
Rust-proof Oil, Varnish coated, Black/Yellow Painted, Galvanized

Steel Flange
Flange Material	Carbon steel	ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
		P250GH, P280GHM 16MN, 20MN ,20#
	Stainless steel	ASTM A182, F304/304L, F316/316L
	Alloy steel	ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Flange Standard	ANSI	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar
	JIS	5K Flanges-20K Flanges
	UNI	6Bar 10Bar 16Bar 25Bar 40Bar
	EN	6Bar 10Bar 16Bar 25Bar 40Bar
Flange TYPE	1.Welding neck Flange, 2.Slip on
	3.Blind flange 4.Long welding neck flange
	5.Lap joint flange 6.Socket welding
	7.Threaded flange 8.Flat flange
Flange Surface	Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer, hot-dipped Galvanized, electrical galvanized
Connection	Welding, Threaded
Technical	Forged, Casting
Flange Size	DN10-DN3600
Flange Package	1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements
Flange Heat Treatment	Normalizing, Annealing, Quenching+Tempering
Flange Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry, and general pipes connecting projects etc.
