ANSI 600cl 1500cla182 F51/F53/ F55 12" 20" 24"32" 48" Weld Neck Flange (WNF)
Company ProfileZheJiang Chengyuan Flange Pipe Fittings Co.,Ltd is located in Wenzhou Valve City,with convenient transportation and fast logictics. The main flanges include: stainless steel flanges, flat welding flanges,butt welding flanges,blind flanges,large diameter elbows,high pressure flanges,sm......
Send Inquiry
Product Description
ZheJiang Chengyuan Flange Pipe Fittings Co.,Ltd is located in Wenzhou Valve City,with convenient transportation and fast logictics.
The main flanges include: stainless steel flanges, flat welding flanges,butt welding flanges,blind flanges,large diameter elbows,high pressure flanges,small diameter flanges, tube plates, manhole flanges and elbows , Tee and other products.
Chengyuan Flanges have been sold to Africa,Europe,the Middle East, Southeast Asia,South America etc, over 30 countries, has a high reputation in the overseas markets.
Standards
ASME B16.5 Flanges
EN 1092-1 Flanges
BS 4504 Flange, BS TABLE D/E/F/H Flanges
JIS B2220 Flange
DIN 2558, DIN 2561, DIN 2565, DIN 2566, DIN 2567, DIN 2568, DIN 2569
MSS SP-44 Flanges
GB/T 9112-2010, GB/T 9115-2010, GB/T 13402-2010
HG/T 20592-2009, HG/T 20615-2009, HG/T 20623-2009
SANS1123 Flanges, SABS 1123 Flanges
ISO 7005-1 Flanges
| Model No. | RF | Dimension | DN15 DN25 DN50 DN100 DN150 DN200 DN250 DN300 DN350 DN400 DN500 DN600 DN700 DN800 DN900 DN1000 DN2000 DN3000 DN4000 DN5000 |
| Trademark | Chengyuan | Material Available | Stainless Steel/Carbon Steel/Alloy Steel/Duplex Steel/Monel/2507/2205/904L |
| Certification | ISO9001 | Pressure Rating | 2bar, 6bar, 10bar, 16bar, 25bar, 40bar, 63bar, 80bar, 100bar, 160bar, 300bar, 400bar |
| HS Code | 7307210000 | Flange Type | Plain Weld Flange/ Slip-On Flange/Weld Neck Flange/Blind Flange |
| Certificate | ISO 9001 | Connection | Butt-Weld, NPT Thread, BSP Thread,Socket Weld |
| Origin | Wenzhou China | Processing | Forged |
| Manufacturing Standard Available of ANSI/BS/DIN/JIS/GOST/GB/SABS | |||
| DIN Series | PN 6, PN 10, PN 16, PN 25, PN 40 | GOST Series | PN 6, PN 10, PN 16, PN 25, PN 40 |
| BS Series | PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40 | BS Tabled Series | Table D/E/F/H |
| EN Series | PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400 | JIS Series | 2K, 5K, 10K, 16K, 20K, 30K, 40K, 63K |
| ASME/ANSI Series | Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500 | SANS/SABS | 600Kpa, 1000Kpa, 1600Kpa, 2500Kpa, 4000Kpa |
| Flange Face Type | |||
| American Series | Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ) | European Series | Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove) |
| Value-Added Services | CNC Machining, Customised Flanges | Coating/Surface | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |

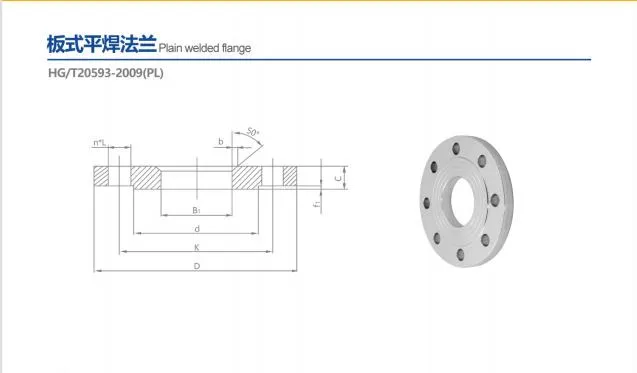

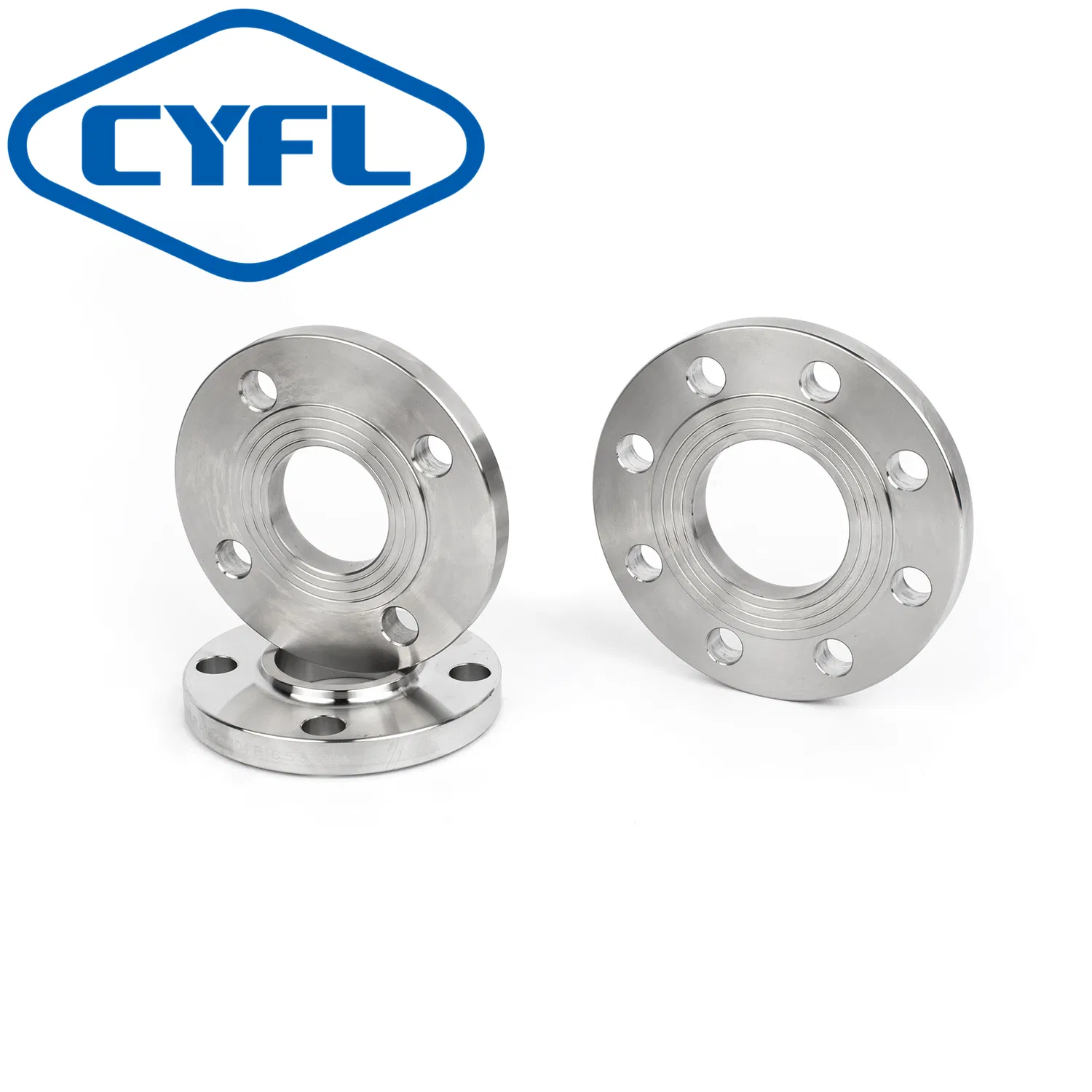

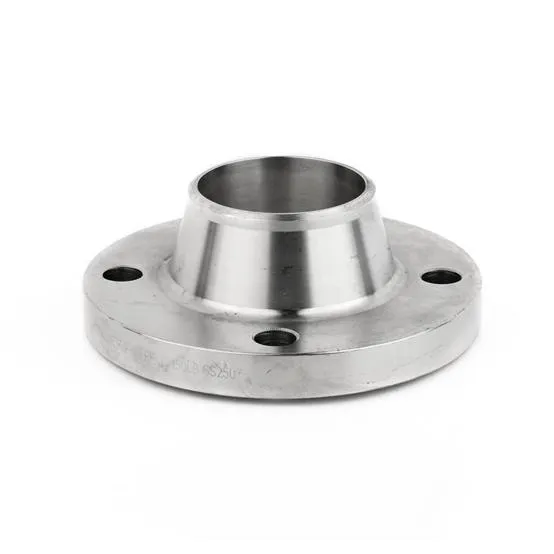

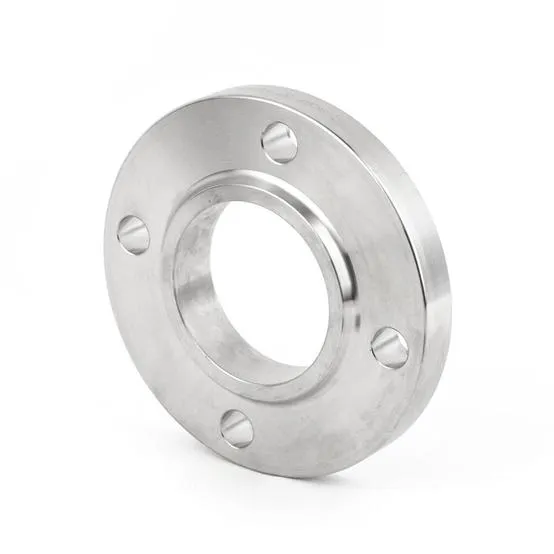

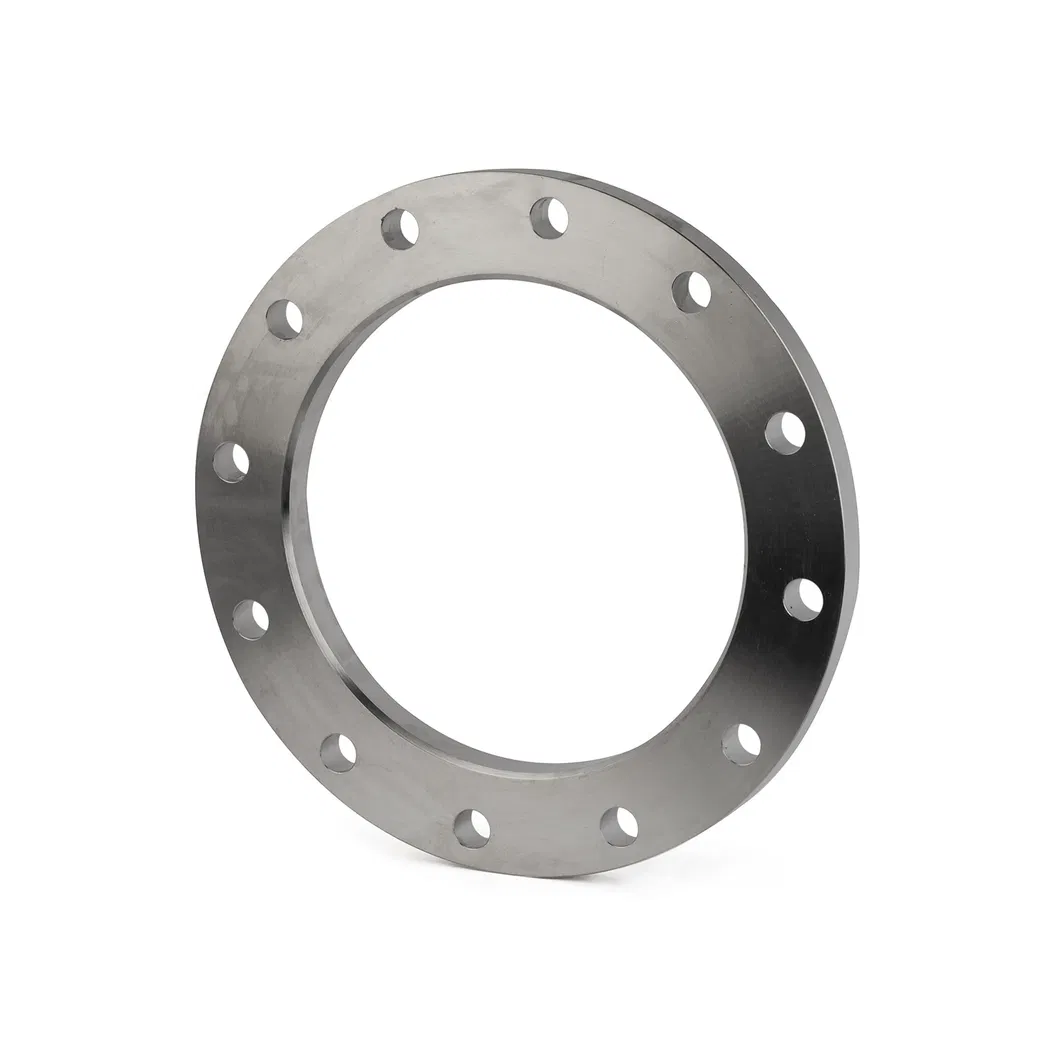

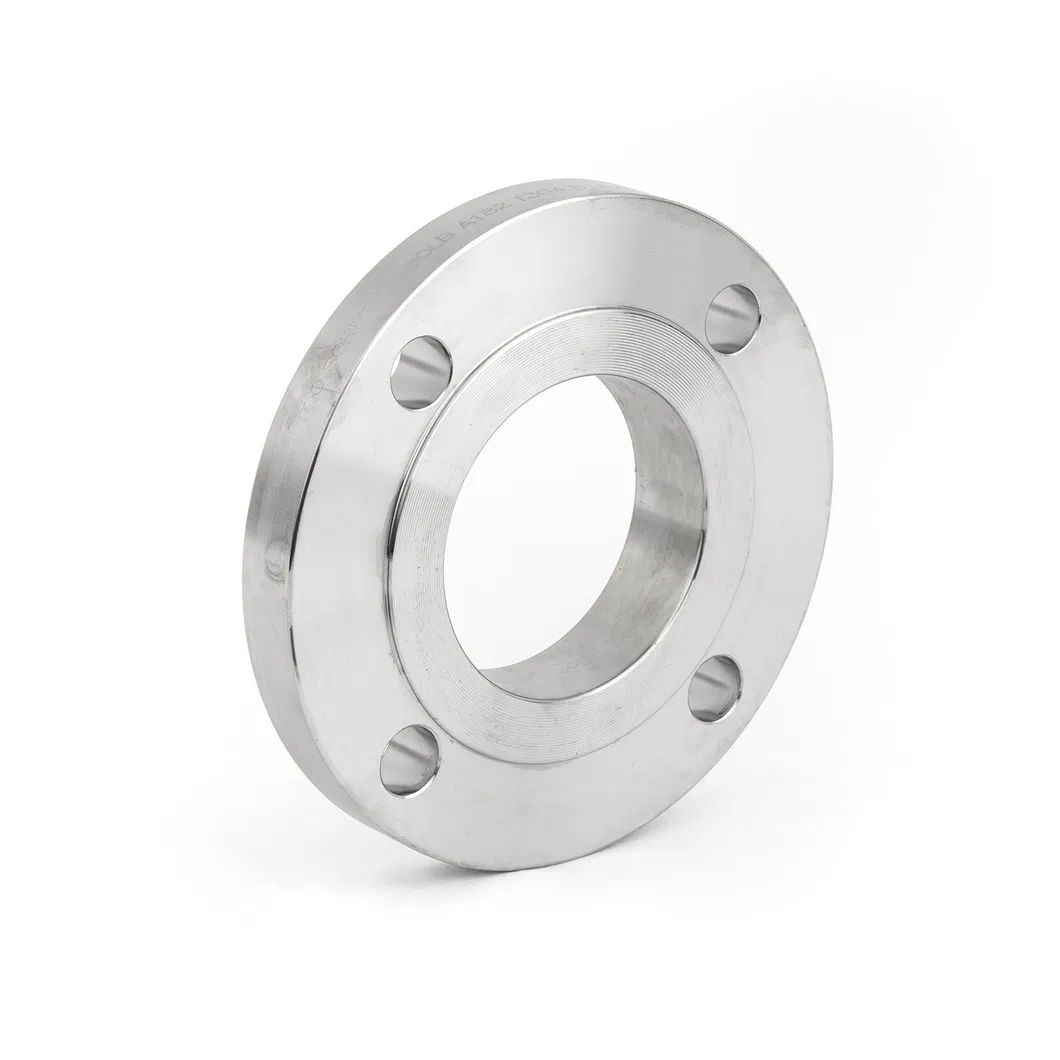

PLATE FLANGE SLIP-ON FLANGE WELD NECK FLANGE

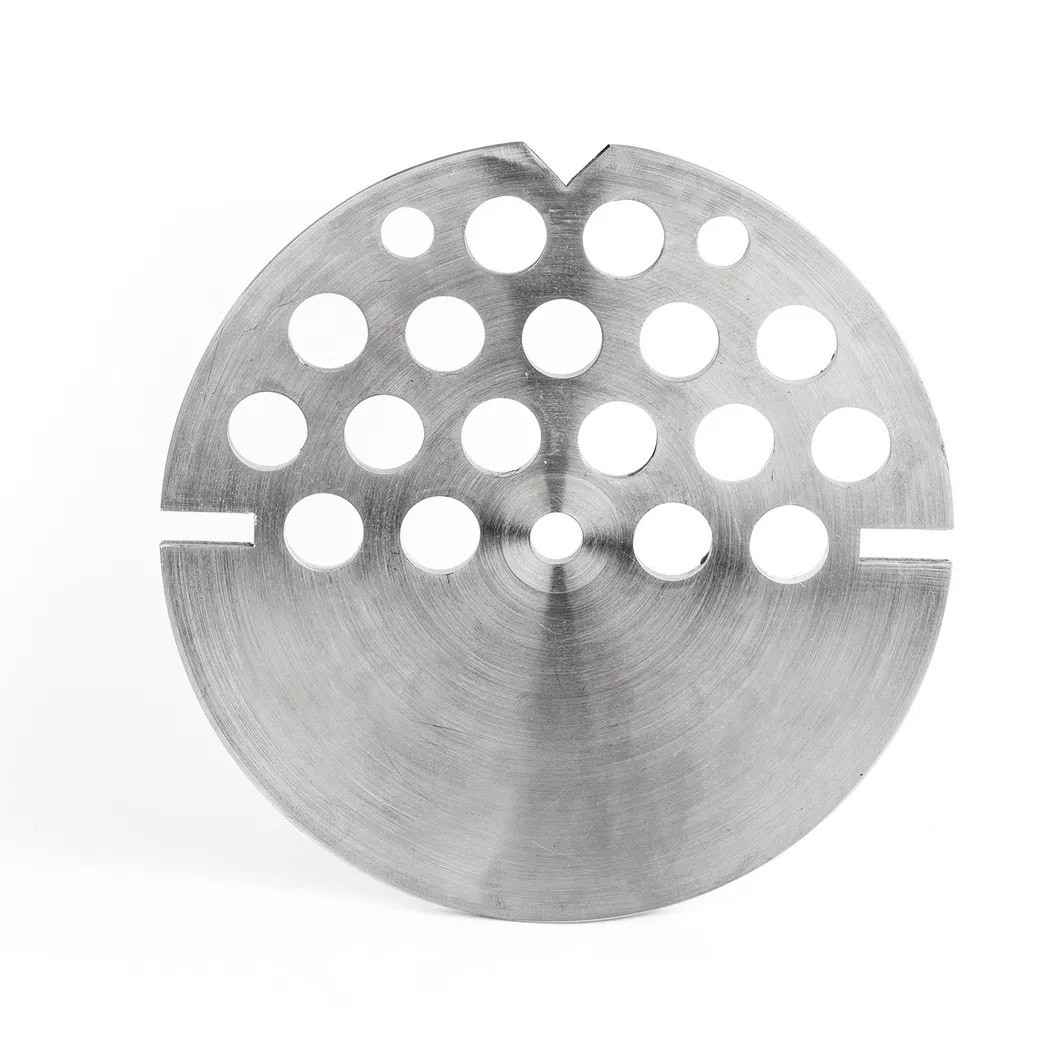

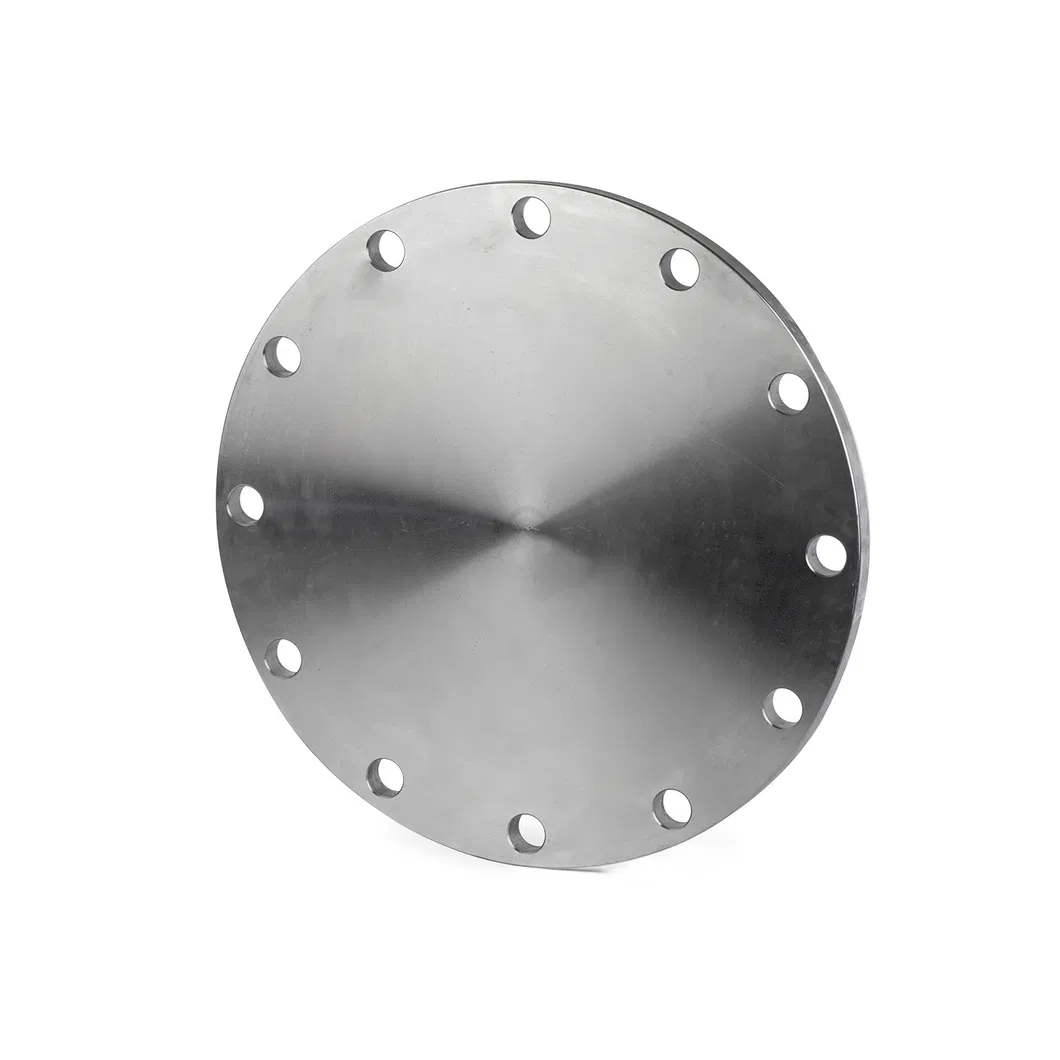

BLIND FLANGE FLANGE RING NON-STANDARD FLANGE

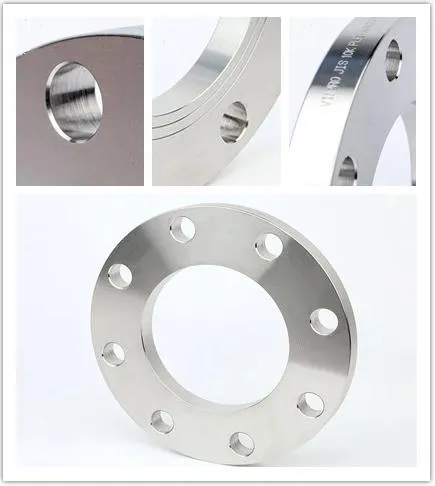

2.Seal face: smooth face, waterlines, serrated finished

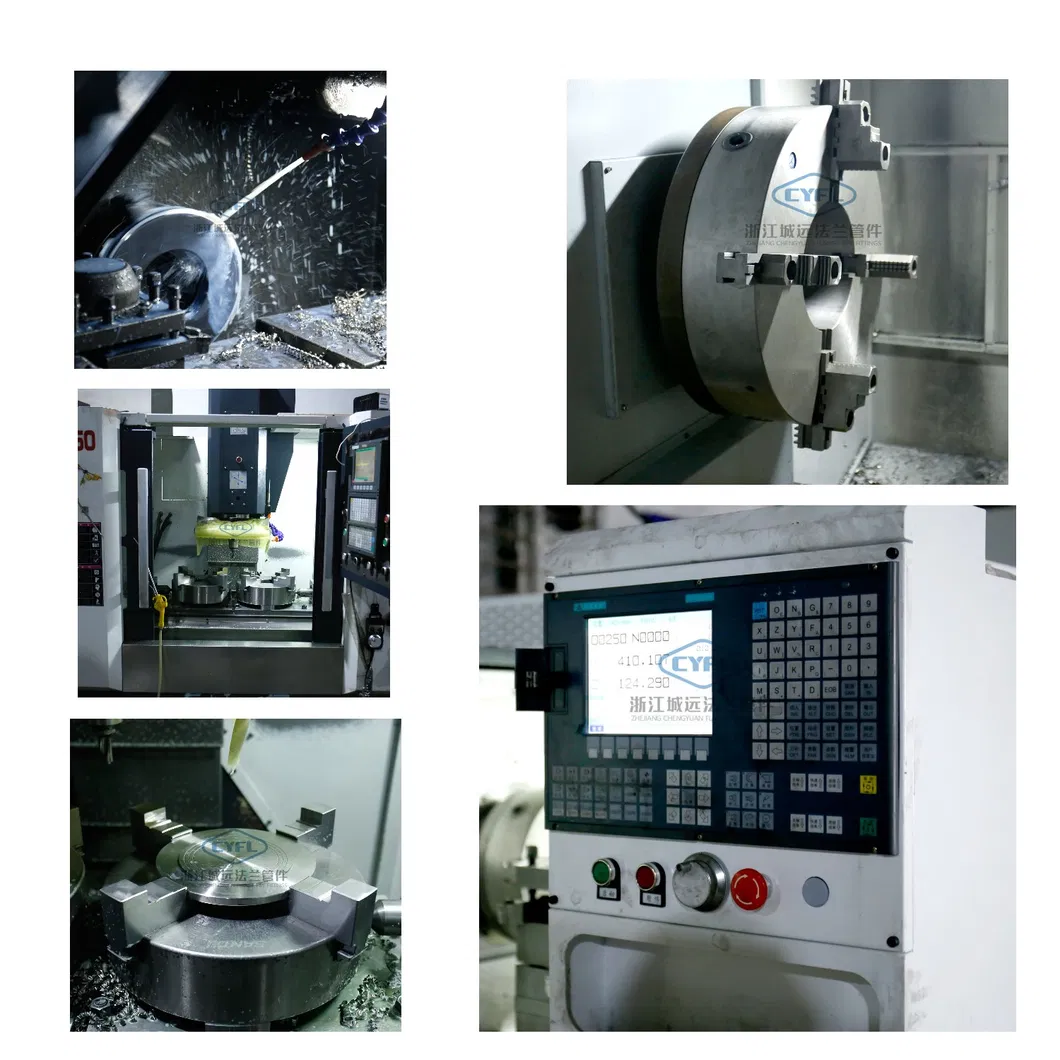

3.CNC fine finished.
Face finish: Arithmetical Average Roughness Height(AARH).
The finish is determined by the standard used.
ANSI B16.5 specifies face finishes within a range 125AARH-500AARH(3.2Ra to 12.5Ra).
Other finishes on requst
1.6 Ra max,1.6/3.2 Ra, 3.2/6.3Ra or 6.3/12.5Ra.
The range 3.2/6.3Ra is most common

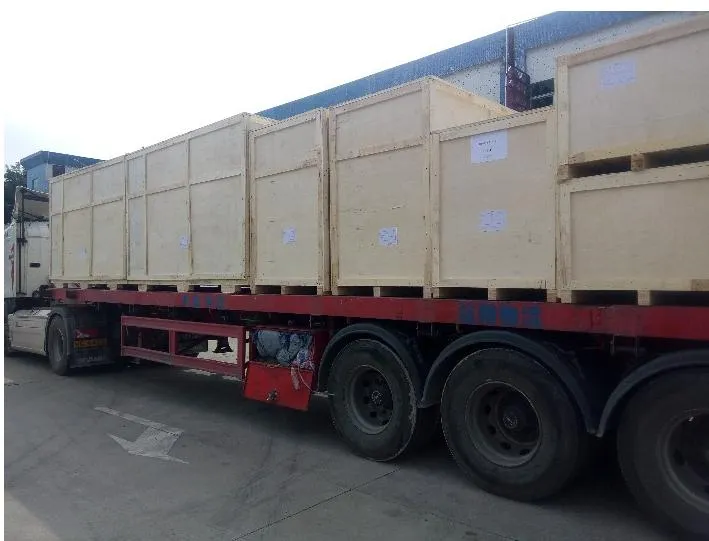

Shipping:
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 10-30days after conformed or according to quantity.
