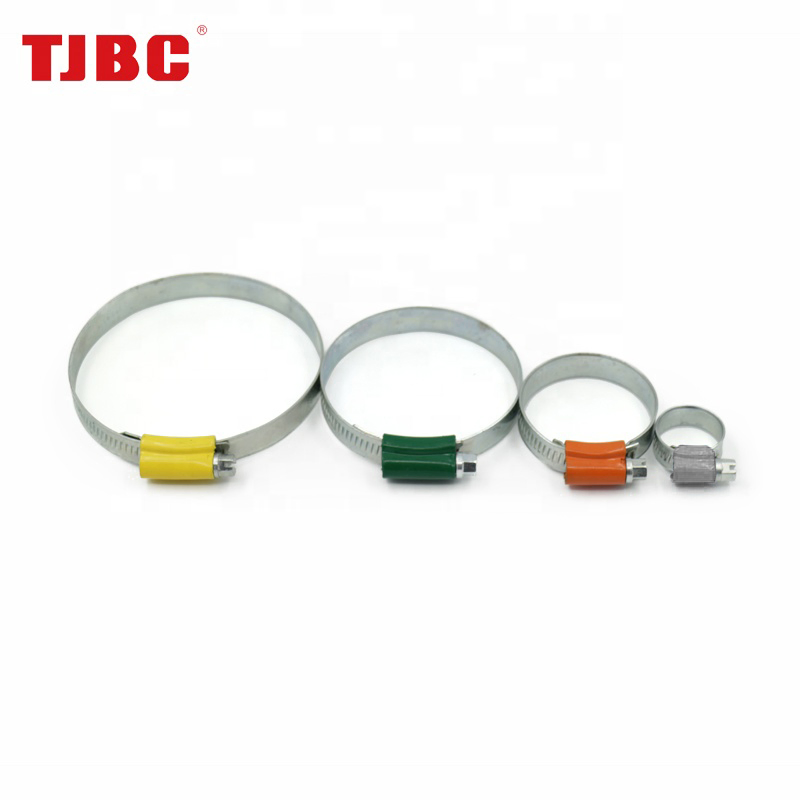

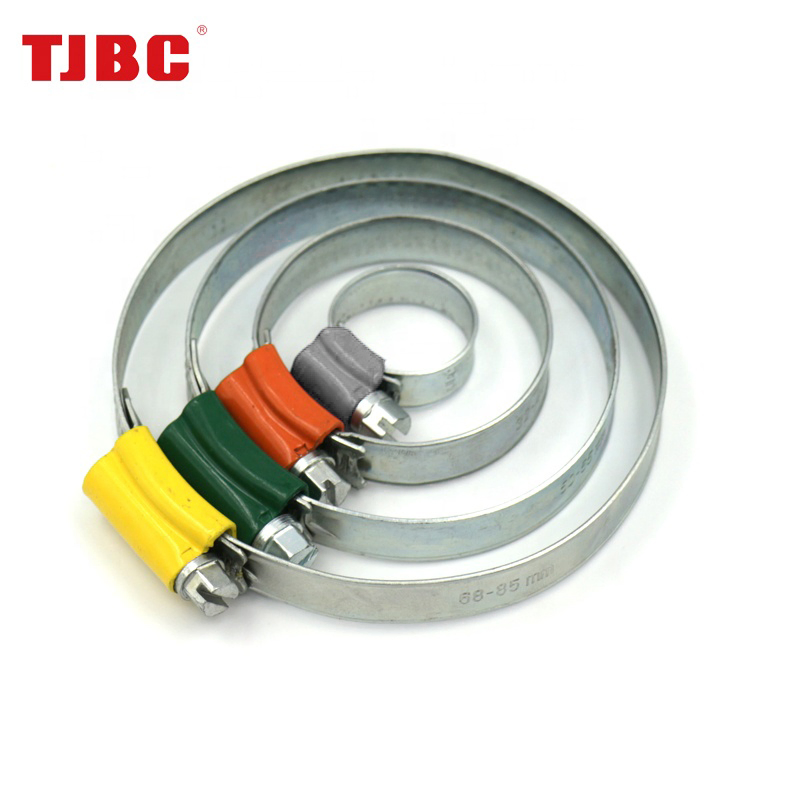

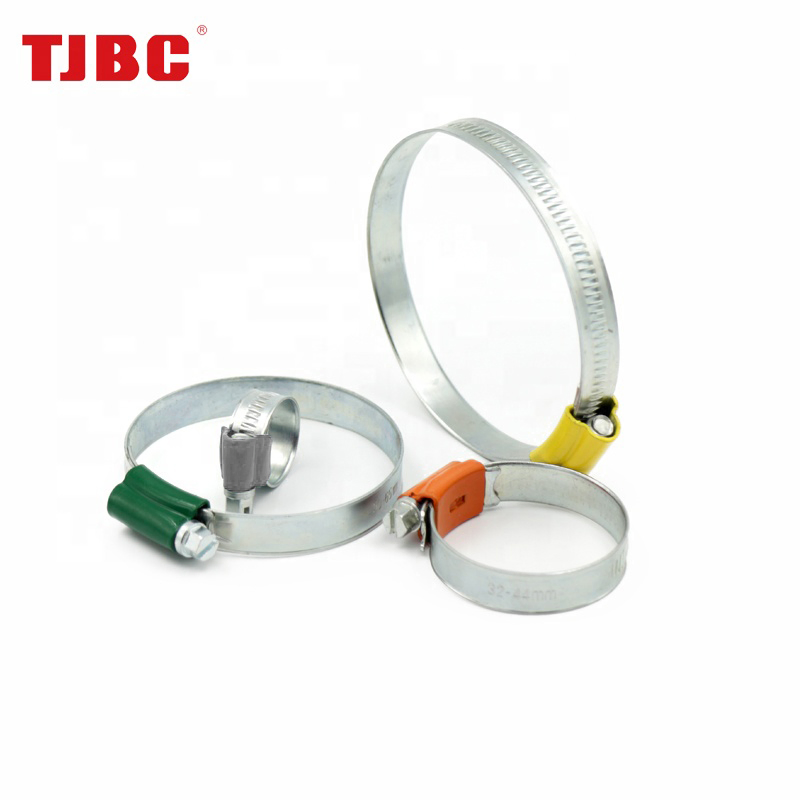

W4 304ss Stainless Steel Adjustable Worm Gear British Type Hose Clip with Tube Housing, 9.7mm Bandwidth, 44-56mm
YS01(British type hose clamp with tube housing)SizebandwidthItemNo// mmmmW1W2W4pcs/bagpcs/cartonsuggestedinstalltorque8-149.7YS01A9814YS01B9814YS01D981410020003.0Nm11-179.7YS01A91117YS01B91117YS01D9111710020003.0Nm13-209.7YS01A91320YS01B91320YS01D9132010020003.0Nm15-249.7YS01A91524YS01B91524YS01D915......
Send Inquiry
Product Description
| YS01(British type hose clamp with tube housing) | |||||||
| Size | bandwidth | ItemNo | / | / | |||
| mm | mm | W1 | W2 | W4 | pcs/bag | pcs/carton | suggested installtorque |
| 8-14 | 9.7 | YS01A9814 | YS01B9814 | YS01D9814 | 100 | 2000 | 3.0Nm |
| 11-17 | 9.7 | YS01A91117 | YS01B91117 | YS01D91117 | 100 | 2000 | 3.0Nm |
| 13-20 | 9.7 | YS01A91320 | YS01B91320 | YS01D91320 | 100 | 2000 | 3.0Nm |
| 15-24 | 9.7 | YS01A91524 | YS01B91524 | YS01D91524 | 100 | 2000 | 3.0Nm |
| 18-28 | 9.7 | YS01A91828 | YS01B91828 | YS01D91828 | 100 | 2000 | 3.0Nm |
| 22-32 | 9.7 | YS01A92232 | YS01B92232 | YS01D92232 | 50 | 1000 | 3.0Nm |
| 26-38 | 9.7 | YS01A92638 | YS01B92638 | YS01D92638 | 50 | 500 | 3.0Nm |
| 32-44 | 9.7 | YS01A93244 | YS01B93244 | YS01D93244 | 50 | 500 | 3.0Nm |
| 38-50 | 9.7 | YS01A93850 | YS01B93850 | YS01D93850 | 50 | 500 | 3.0Nm |
| 44-56 | 9.7 | YS01A94456 | YS01B94456 | YS01D94456 | 25 | 500 | 3.0Nm |
| 50-65 | 9.7 | YS01A95065 | YS01B95065 | YS01D95065 | 25 | 250 | 3.0Nm |
| 58-75 | 9.7 | YS01A95875 | YS01B95875 | YS01D95875 | 25 | 250 | 3.0Nm |
| 68-85 | 9.7 | YS01A96885 | YS01B96885 | YS01D96885 | 10 | 250 | 3.0Nm |
| 77-95 | 9.7 | YS01A97795 | YS01B97795 | YS01D97795 | 10 | 250 | 3.0Nm |
| 15--24 | 11.7 | YS01A121524 | YS01B121524 | YS01D121524 | 50 | 500 | 4.8Nm |
| 19--28 | 11.7 | YS01A121928 | YS01B121928 | YS01D121928 | 50 | 500 | 4.8Nm |
| 22--32 | 11.7 | YS01A122638 | YS01B122638 | YS01D122638 | 50 | 500 | 4.8Nm |
| 26--38 | 11.7 | YS01A122638 | YS01B122638 | YS01D122638 | 50 | 500 | 4.8Nm |
| 32--44 | 11.7 | YS01A123244 | YS01B123244 | YS01D123244 | 50 | 500 | 5.2Nm |
| 38--50 | 11.7 | YS01A123850 | YS01B123850 | YS01D123850 | 50 | 500 | 5.2Nm |
| 44--56 | 11.7 | YS01A124456 | YS01B124456 | YS01D124456 | 25 | 500 | 5.2Nm |
| 50--65 | 11.7 | YS01A125065 | YS01B125065 | YS01D125065 | 25 | 500 | 5.2Nm |
| 58--75 | 11.7 | YS01A125875 | YS01B125875 | YS01D125875 | 25 | 200 | 5.2Nm |
| 68--85 | 11.7 | YS01A126885 | YS01B126885 | YS01D126885 | 25 | 200 | 5.2Nm |
| 77--95 | 11.7 | YS01A127795 | YS01B127795 | YS01D127795 | 10 | 200 | 5.2Nm |
| 87--112 | 11.7 | YS01A1287112 | YS01B1287112 | YS01D1287112 | 10 | 200 | 5.2Nm |
| 104--138 | 11.7 | YS01A1214138 | YS01B1214138 | YS01D1214138 | 10 | 100 | 5.2Nm |
| 130--165 | 11.7 | YS01A12130165 | YS01B12130165 | YS01D12130165 | - | 100 | 5.2Nm |
| 150--180 | 11.7 | YS01A12150180 | YS01B12150180 | YS01D12150180 | - | 100 | 5.2Nm |
| 175--205 | 11.7 | YS01A12175205 | YS01B12175205 | YS01D12175205 | - | 100 | 5.2Nm |
| 200--231 | 11.7 | YS01A12200231 | YS01B12200231 | YS01D12200231 | - | 50 | 5.2Nm |
| 226--256 | 11.7 | YS01A12226256 | YS01B12226256 | YS01D12226256 | - | 50 | 5.2Nm |
| 251--282 | 11.7 | YS01A12251282 | YS01B12251282 | YS01D12251282 | - | 50 | 5.2Nm |
| 277--307 | 11.7 | YS01A12277307 | YS01B12277307 | YS01D12277307 | - | 50 | 5.2Nm |
| Material | Band | Housing | Screw |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W2 | AISI 430SS | AISI 304SS | Zinc plated steel |
| W4 | AISI 304SS | AISI 304SS | AISI 304SS |
