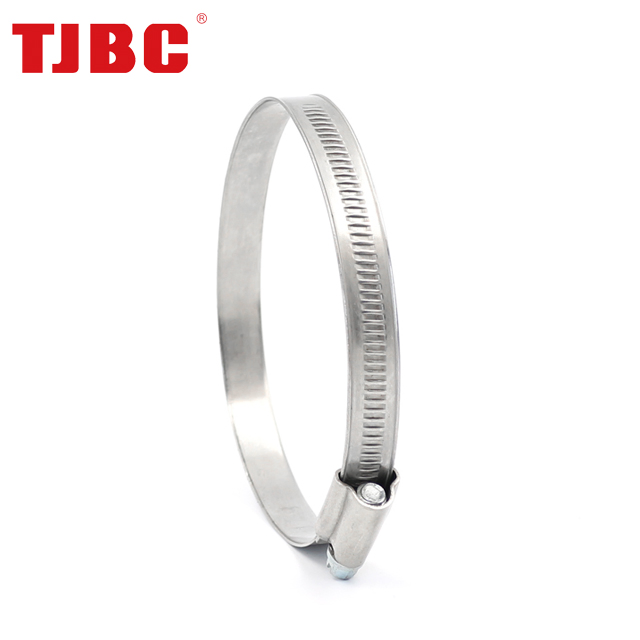

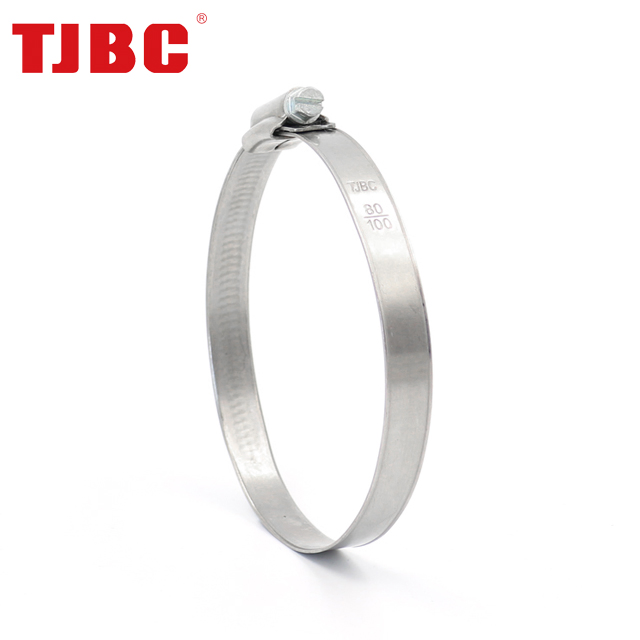

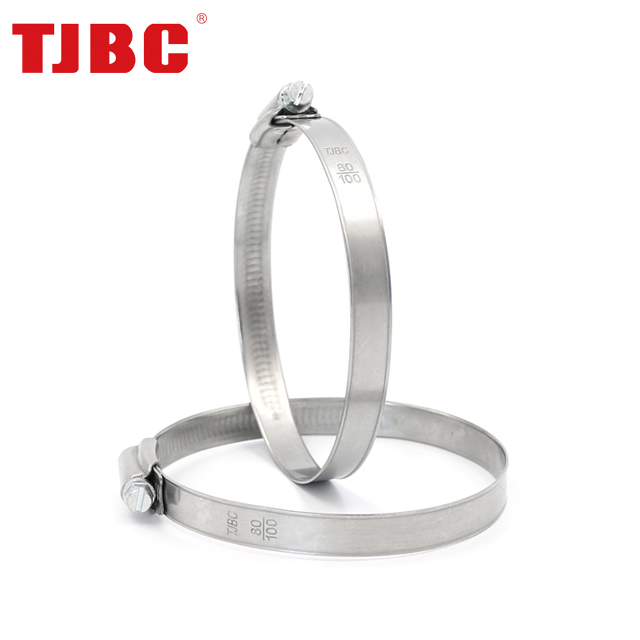

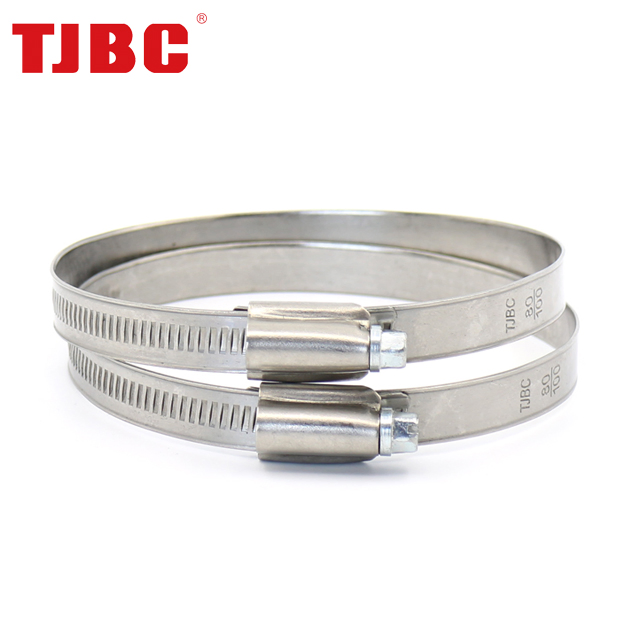

China W1 Zinc Plated Steel Worm Gear Adjustable British Type Hose Clamp with Welded Housing for Automotive, 76-92mm

Product Description

YS02(British type hose clamp with welded housing)
Size		bandwidth	ItemNo		/	/
mm	NO	mm	W1	W4	pcs/bag	pcs/carton	suggested installtorque
10-16	000	9.7	YS02A1016	YS02D1016	100	2000	3.0
13-19	00	9.7	YS02A1319	YS02D1319	100	2000	3.0
16-25	0	9.7	YS02A1625	YS02D1625	100	2000	3.0
19-29	0X	9.7	YS02A1929	YS02D1929	100	1000	3.0
22-32	1A	11.7	YS02A2232	YS02D2232	50	500	4.8
25-38	1	11.7	YS02A2538	YS02D2538	50	500	4.8
32-44	1X	11.7	YS02A3244	YS02D3244	50	500	5.2
35-51	2A	11.7	YS02A3551	YS02D3551	50	500	5.2
38-57	2	11.7	YS02A3857	YS02D3857	25	500	5.2
44-64	2X	11.7	YS02A4464	YS02D4464	25	500	5.2
51-70	3	11.7	YS02A5170	YS02D5170	25	250	5.2
64-76	3X	11.7	YS02A6476	YS02D6476	25	250	5.2
70-89	4	11.7	YS02A7089	YS02D7089	10	200	5.2
76-92	4X	11.7	YS02A7692	YS02D7692	10	200	5.2
80-100	5	11.7	YS02A80100	YS02D80100	10	200	5.2
90-110	5X	11.7	YS02A90110	YS02D90110	10	200	5.2
100-120	6	11.7	YS02A100120	YS02D100120	10	200	5.2
110-130	6X	11.7	YS02A110130	YS02D110130	10	200	5.2
120-140	7	11.7	YS02A120140	YS02D120140	10	100	5.2
130-150	7X	11.7	YS02A130150	YS02D130150	-	100	5.2
140-160	8	11.7	YS02A140160	YS02D140160	-	50	5.2
150-170	-	11.7	YS02A150170	YS02D150170	-	50	5.2
160-180	-	11.7	YS02A160180	YS02D160180	-	50	5.2
170-190	-	11.7	YS02A170190	YS02D170190	-	50	5.2
180-200	-	11.7	YS02A180200	YS02D180200	-	50	5.2
190-210	-	11.7	YS02A190210	YS02D190210	-	50	5.2
200-220	-	11.7	YS02A200220	YS02D200220	-	50	5.2
220-240	-	11.7	YS02A220240	YS02D220240	-	50	5.2
230-250	-	11.7	YS02A230250	YS02D230250	-	50	5.2
240-260	-	11.7	YS02A240260	YS02D240260	-	50	5.2
280-300	-	11.7	YS02A280300	YS02D280300	-	50	5.2
300-320	-	11.7	YS02A300320	YS02D300320	-	50	5.2
