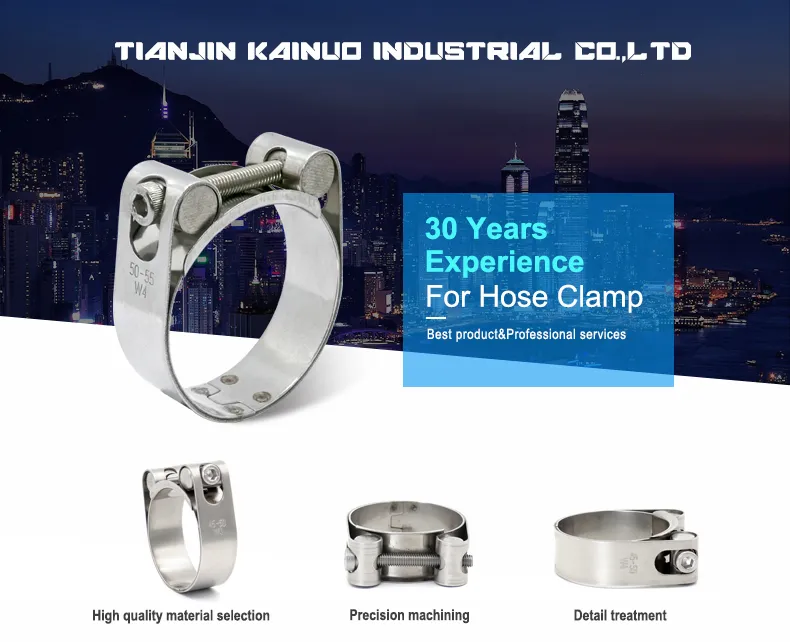

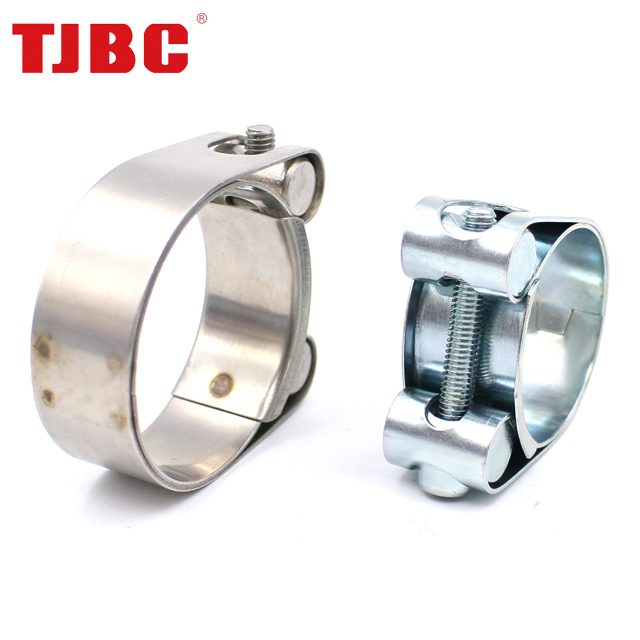

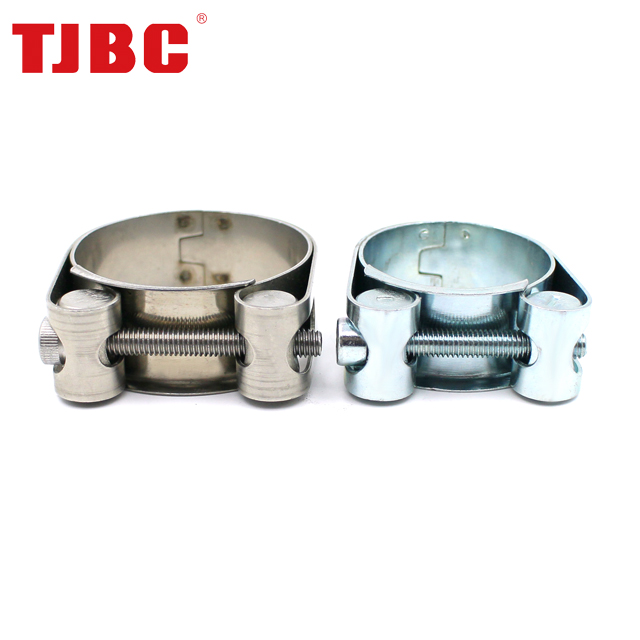

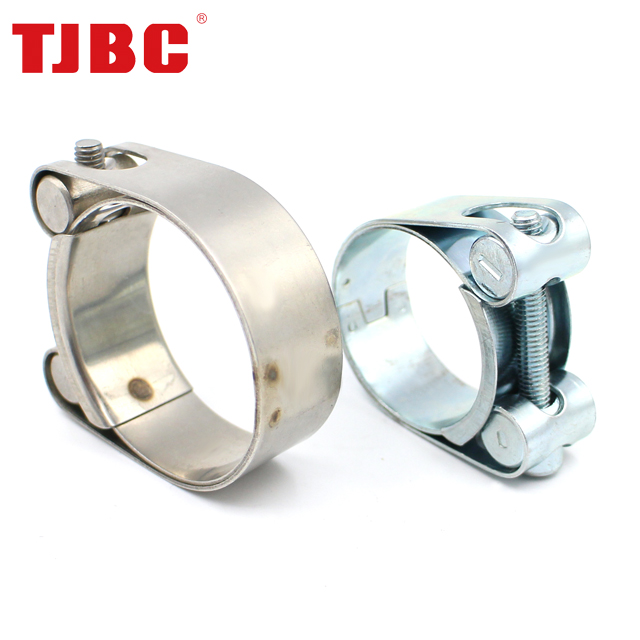

              W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm
              • W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mmW1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm
              • W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mmW1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm
              • W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mmW1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm
              • W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mmW1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm

              W1 Zinc Plated Steel White Galvanized Heavy Duty Single Bolt Unitary Hose Clamp with Double Layers Robust Bands for Exhaust Pipe, 55-60mm

              QL04 Unitary clamp with double bandsSizeItem no.bandwidth mmscrewthickness of bandmmsuggestedinstall torque/pcs/cartonmmW1W4W535-40QL04A3540QL04D3540QL04E354020M6*451.09Nm5040-45QL04A4045QL04D4045QL04E40451.05045-50QL04A4550QL04D4550QL04E45501.05050-55QL04A5055QL04D5055QL04E50551.05055-60QL04A5560QL......

              Send Inquiry

              Product Description

              QL04 Unitary clamp with double bands
              SizeItem no.bandwidth mmscrewthickness of band
              mm              		suggested
              install torque              		/
              pcs/carton
              mmW1W4W5
              35-40QL04A3540QL04D3540QL04E354020M6*451.09Nm50
              40-45QL04A4045QL04D4045QL04E40451.050
              45-50QL04A4550QL04D4550QL04E45501.050
              50-55QL04A5055QL04D5055QL04E50551.050
              55-60QL04A5560QL04D5560QL04E55601.050
              60-65QL04A6065QL04D6065QL04E60651.050
              65-70QL04A6570QL04D6570QL04E65701.050
              70-75QL04A7075QL04D7075QL04E70751.050
              75-80QL04A7580QL04D7580QL04E75801.050
              80-85QL04A8085QL04D8085QL04E80851.050
              85-90QL04A8590QL04D8590QL04E85901.050
              90-95QL04A9095QL04D9095QL04E90951.050
              95-100QL04A95100QL04D95100QL04E951001.050
              100-105QL04A100105QL04D100105QL04E1001051.050
              105-110QL04A105110QL04D105110QL04E1051101.050
              110-115QL04A110115QL04D110115QL04E1101151.050
              115-120QL04A115120QL04D115120QL04E1151201.050
              120-125QL04A120125QL04D120125QL04E1201251.050
              125-130QL04A125130QL04D125130QL04E1251301.050
              130-135QL04A130135QL04D130135QL04E1301351.050
              135-140QL04A135140QL04D135140QL04E1351401.050
              140-145QL04A140145QL04D140145QL04E1401451.050
              145-150QL04A145150QL04D145150QL04E1451501.050
              150-155QL04A150155QL04D150155QL04E1501551.050
              155-160QL04A155160QL04D155160QL04E1551601.050

              MaterialBandbridgeTrunnionbolt
              W1Zinc plated steelZinc plated steelZinc plated steelZinc plated steel
              W4AISI 301SS/304SSAISI 301SS/304SSAISI 301SS/304SSA2-70
              W5AISI 316SSAISI 316SSAISI 316SSA4-70
