Product Description

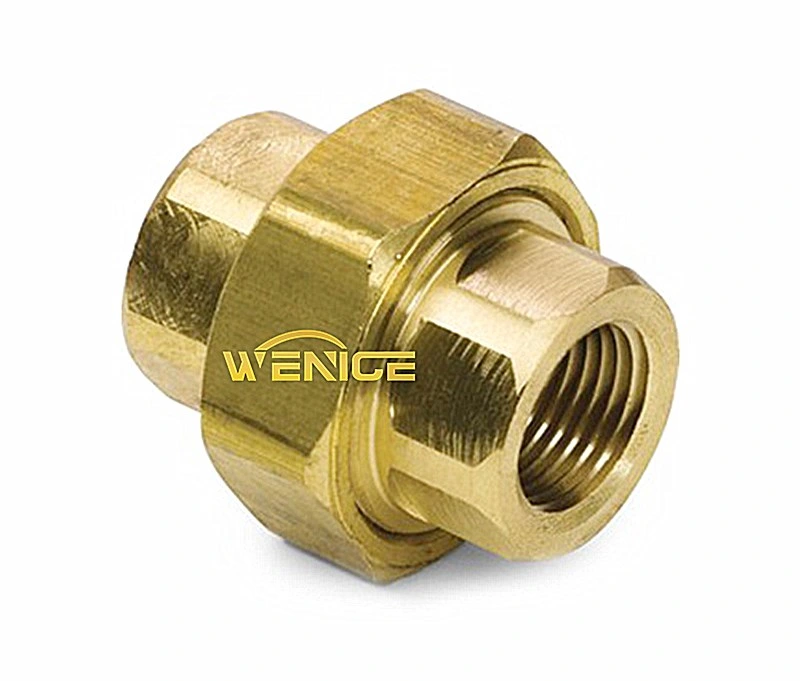

THREAD 3/8 NPT UNION BRASS PIPE FITTINGS
Thread 3/8 NPT Union Brass Pipe Fittings 3250
Brass Pipe Fittings & Adapters
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Working Pressure: 1200 PSI Maximum based on size always consult tubing/pipe specifications.
1. Tighten approximately 2-1/2 turns past hand tight.
2. Thread Sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4
3. Thread Types: NPT, NPSF, NPTF, Metric, BSPT, BSPP, UNF

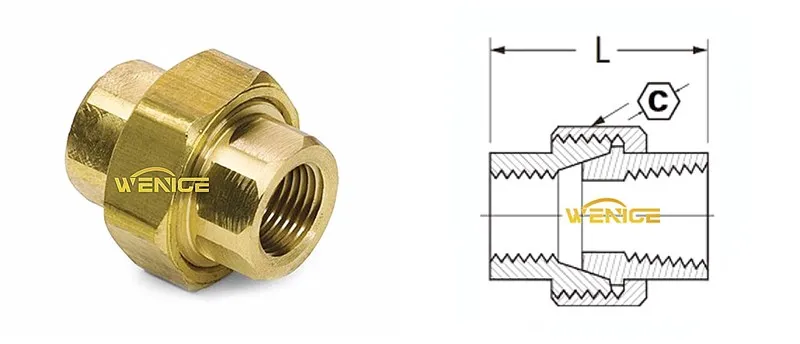

THREAD 3/8 NPT UNION BRASS PIPE FITTINGS DETAILS
Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems
Conformance:
Meets specifications and standards of ASA,ASME and SAE.
Reference Part No:
3250 - 212P - 104A - 104B

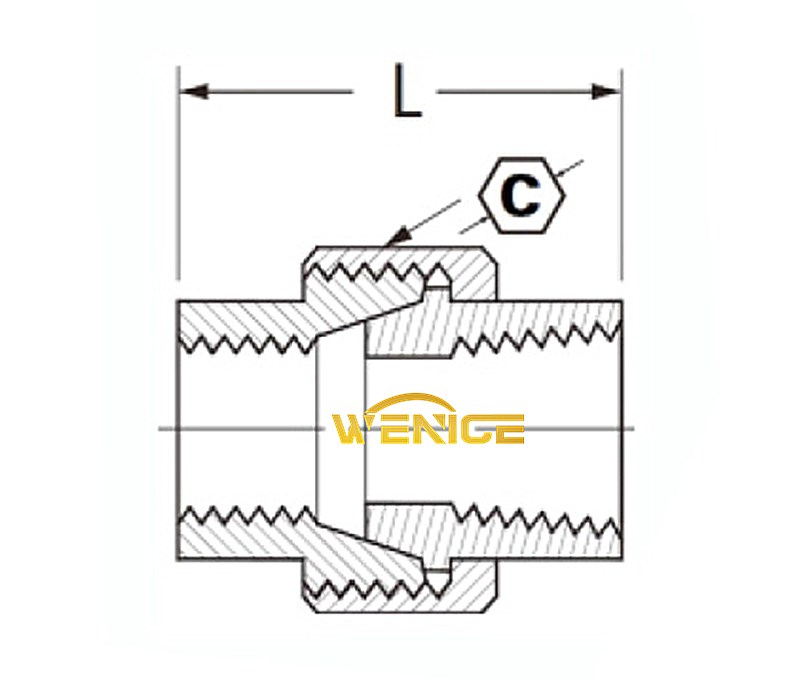

| PART# | Thread Size | C | L |
| 3250-A | 1/8 | 15/16 | 1.19 |
| 3250-B | 1/4 | 1-1/16 | 1.31 |
| 3250-C | 3/8 | 1-1/4 | 1.75 |
| 3250-D | 1/2 | 1-9/16 | 1.79 |
L:Light
