Tank Brewing Accessories Stainless Steel 316L Carbonating Diffuser Stone

Product Description

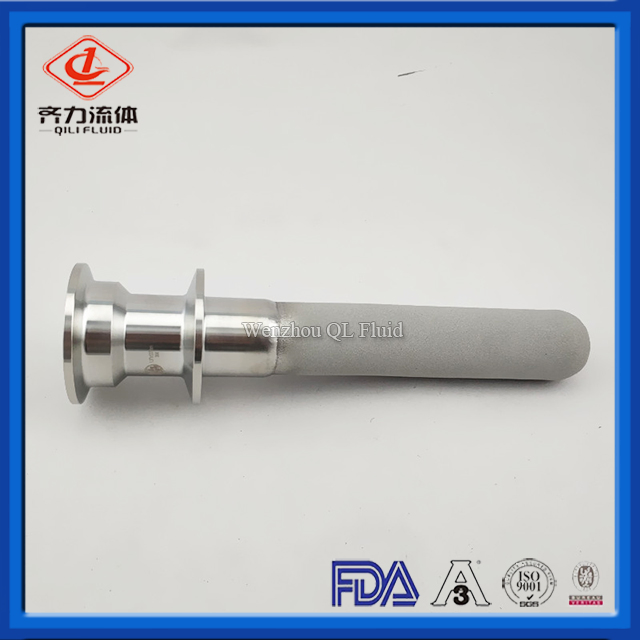

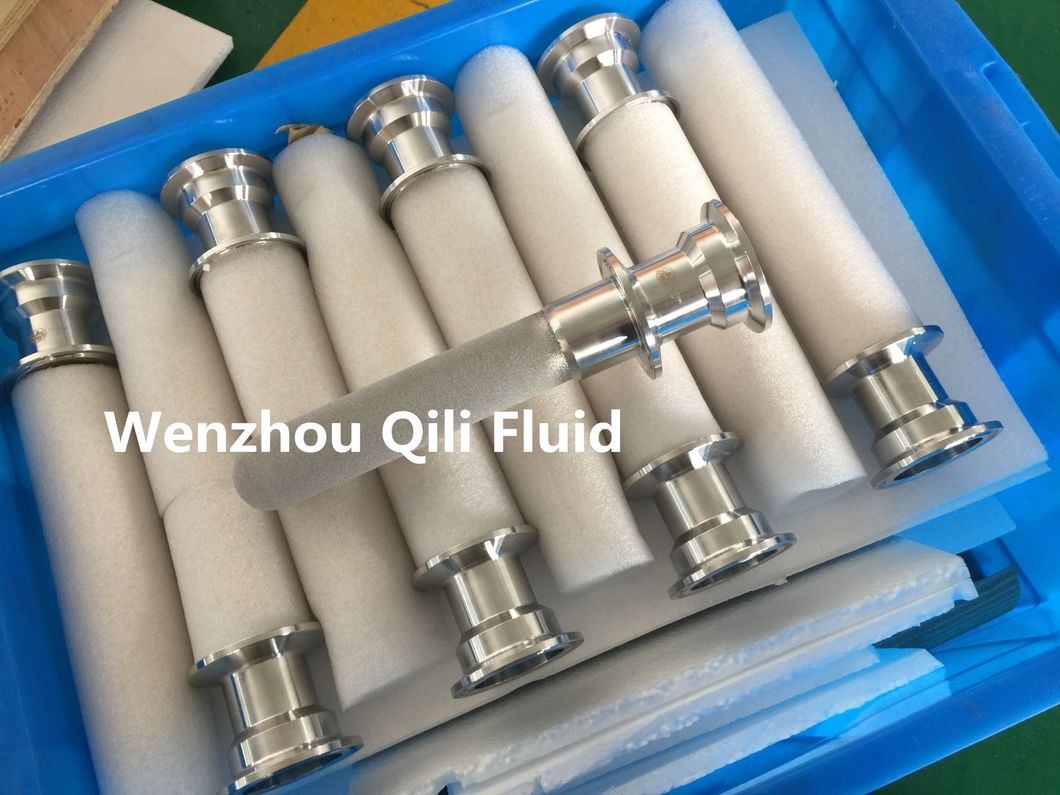

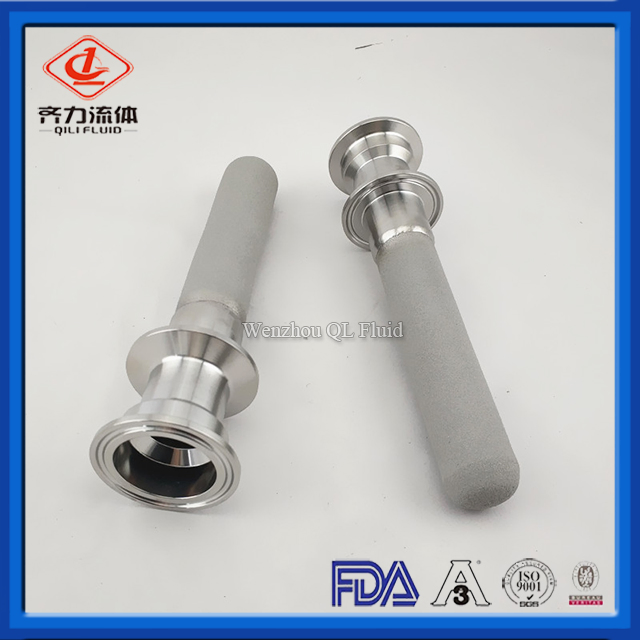

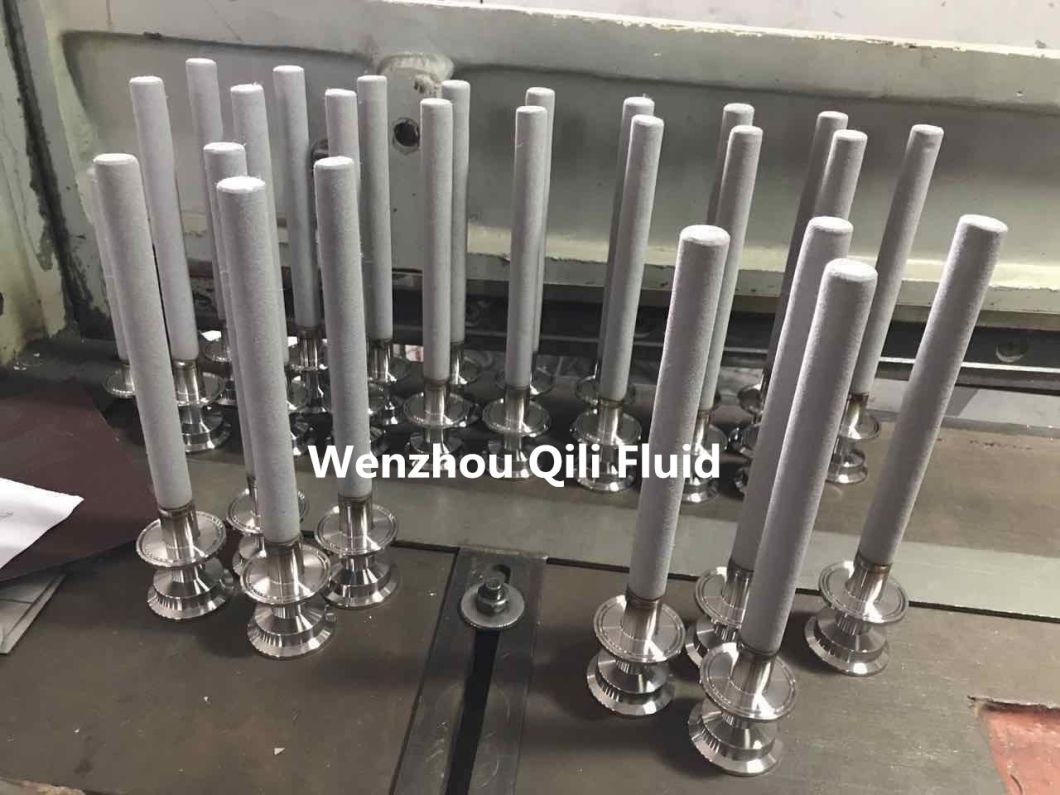

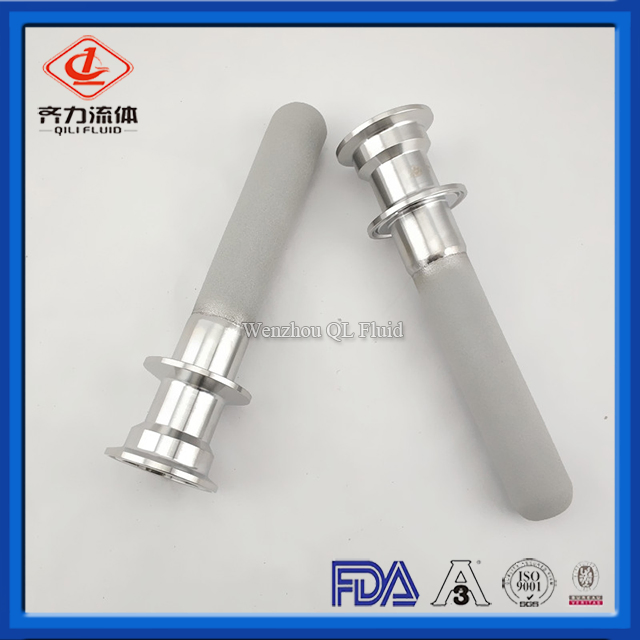

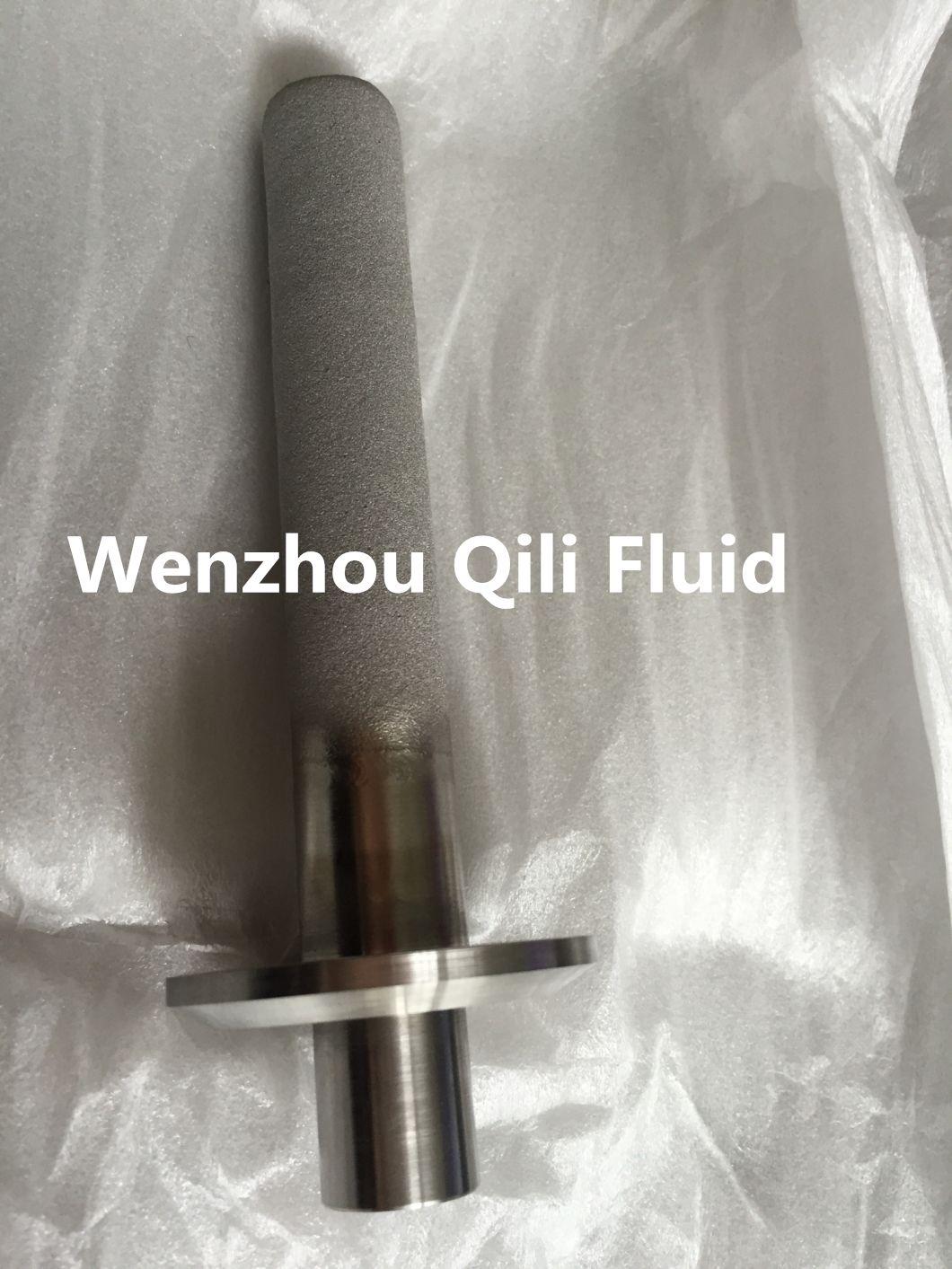

Carbonation stones, typically an accessory found on brite beer fermentation tanks, are designed to be directly mounted via a Tri Clamp fitting. Each carbonation stone, made from sintered stainless steel SS316, is a submersible porous body that diffuses CO2 gas directly into brewing liquid. In an ideal system, the stone is mounted on the lowest part of the brite tank providing for the longest distance for CO2 to travel to the head. Some brewers use a carbonating stone inside a conical fermenter (or Uni Tank), rather than a brite tank. The most efficient system on the market for carbonation. Submersible porous body diffuses CO2 gas directly into liquid to create carbonation. NPT/NPS port size is based on NPT/NPS pipe size interior diameter (ID). All Tri Clamp carbonation stones have the following features.

• 1½ inch Tri Clamp fitting mounts on tank ferrule
• ¼ inch FNPT gas connection
• ¼ inch FNPT fitting
• ¾ inch x 4 inch 20mm diffusing stone
• 2 micron porosity
• Stainless steel SS316 body
• extended long neck for jacketed tanks

Advantages:
1) Stable shape, impact resistance and alternating load capacity are superior to other metal filter materials;

2) Breathability and stable separation effect;

3) Excellent mechanical strength, suitable for use in high temperature, high pressure and strong corrosive environments;

4) Especially suitable for high temperature gas,fluid filtration;

5) Products of various shapes and precisions can be customized according to user requirements, and various interfaces can be made by welding.

Any connection types or sizes can be customized according to your specific demand.Qili also provide concrete drawings for confirmation.













We mainly produce a series of valves and pipe fittings  as following.
1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Diaphragm Valves
Sanitary Sample Valves
Sanitary Reversing Valves
Sanitary Pressure Relief Valves

2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary Tee
Sanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Manways

3.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve

4.Sanitary Tubes

5.Sanitary Pumps


FAQ:
1.Are you a trader or manufacturer?
We are a manufacturer (Forging workshop and CNC machining workshop )

2.Can your products reach to FDA , CE and 3A requirements?Yes, all of our material can reach to the requirements of FDA, ISO and 3A Certificate).

3.We can supply:
Sanitary Butterfly Valve, Sanitary Check Valve and Diaphragm Valves, as well as Various Tank Accessories:  Sight Glass, Strainers/Filter, Cleaning Ball, And other Pipe Fittings, (Pipe Unions: SMS, DIN, IDF, RJT, 3A,DS; Fittings: Ferrule,Elbow, Tee, Reducer and all other Non-standrad fittings), each products are tested well by our strictly Quality Control System, and we also have excellent service to support you and promote your business.

4.Lead Time:
For large quantity, as usual, it can be sent out within 20-40 days.
Small parcel will be dispatched by DHL, FedEx, UPS OR TNT Courier.
Big cargo will be delivered by Air freight or By Sea.

5.Our Service:
About payment:
Payment methods: L/C, T/ T, Western Union

6.About samples:
We can provide samples production and service. Usually 2 to 5 days, the sample can be sent to your hands. We will choose the shipping way as you required: By sea, by air or by express. Any question about samples, please contact us.

7.For OEM products:
We will finish the production within 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose the delivery way as you required: By sea, by air, by express ect. Save your cost is our mission.

8.Warranty:
Any question or problem will be respond within 12 hours.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Purpose:Attitude is everything.
