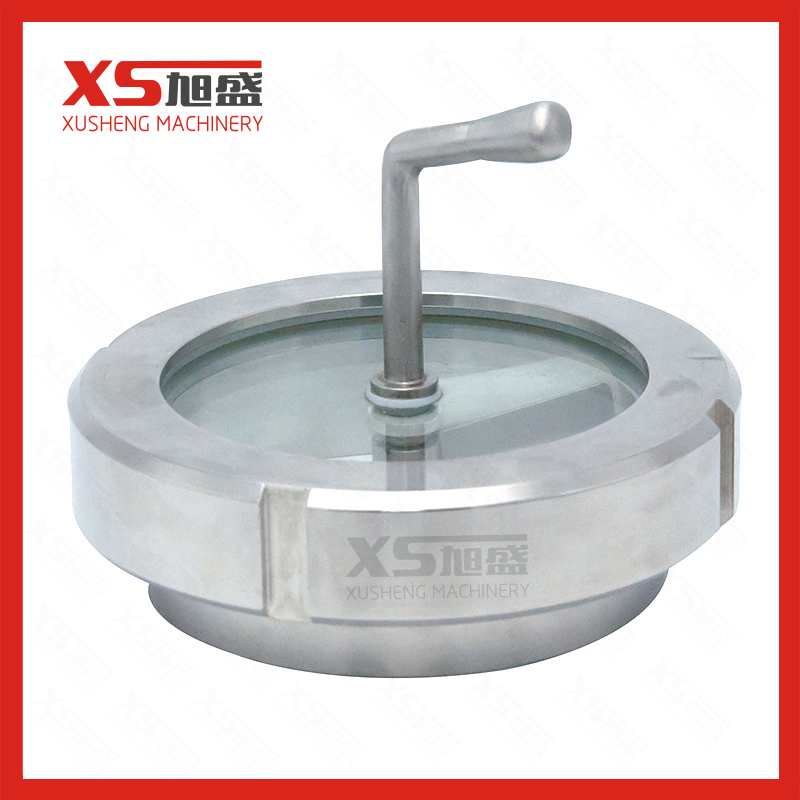

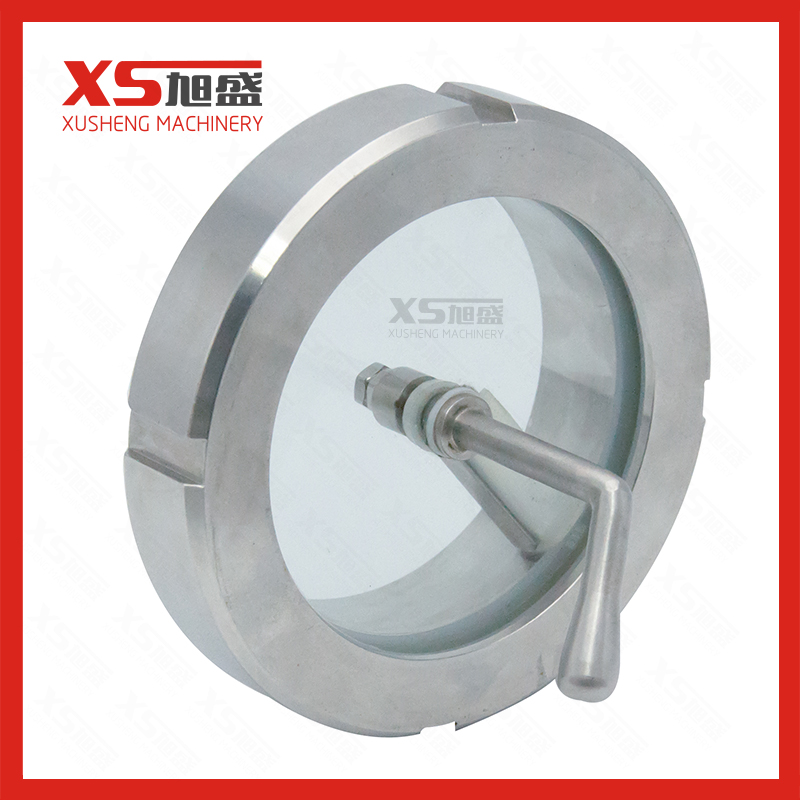

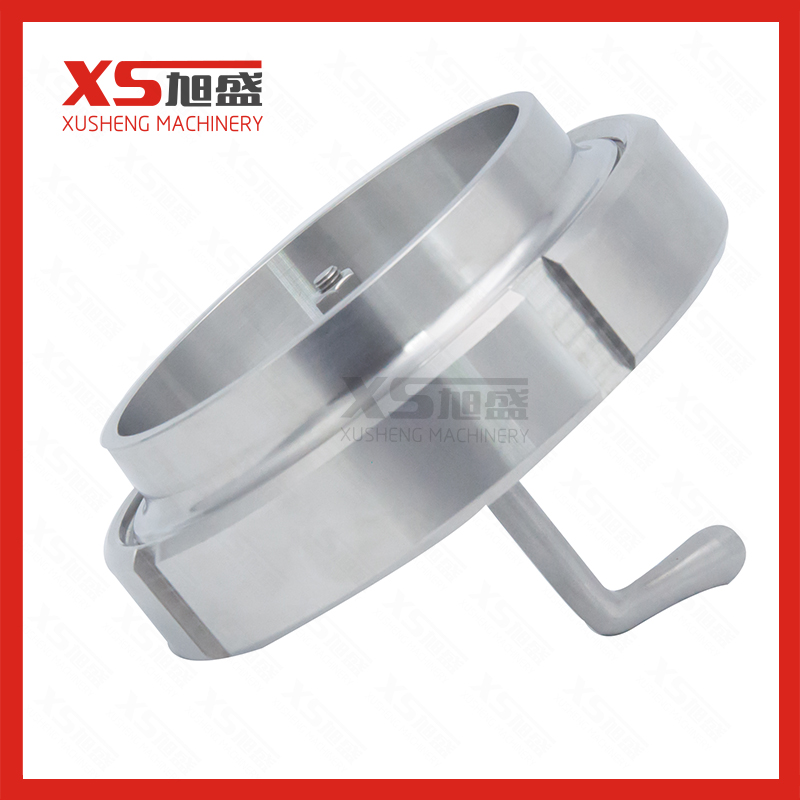

Stainless Steel Tank Union Type Sight Glass with Wiper
Products Name:Stainless Steel Tank Union Type Sight Glass with WiperIt is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or......
Send Inquiry
Product Description
Products Name:Stainless Steel Tank Union Type Sight Glass with Wiper
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline
Performance of Tank Lamp Sight Glass
Features of Tank Lamp Sight Glass
Data Sheet
Parts Name of Tank Lamp Sight Glass
Welcome to contact us for Stainless Steel Tank Union Type Sight Glass with Wiper
Contact:Ms.Sysyy Liu
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline
| Availably standard | SMS,DIN,,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | DN150 |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, , NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc |
| Protection Lens Cover | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
| Screw Blot | Full Stainless Steel |
| Structure | Straight way,cross |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
| Available Size | DN65,DN80,DN100,DN125,DN150 |
| Available Material | Ss304, Ss304L ,Ss316, Ss316L |
| Available Standard | SMS,DIN |
| Operating voltage | 12V / 24V / 36V / 220V |
| Power | 20W / 50W / 100W |
| Luminous flux | 220 lumens, lamp life: 50,000 hours, do not worry about frequently changing a light bulb, and the 5th battery 14500 lithium battery-powered GM, do not have to worry about power, luminous tail. |
| Lamp | 1W using a bright LED lamp, Taiwan chip, domestic assembly. |
| Power | Using a 5 batteries, power lasting more powerful, it is recommended to use high mAh rechargeable battery, more power, LED lights brighter, while the economic benefits. |
| Availabe Connection | Welding ends,triclamp ends,male ends |
| Seal Material | Silicone, EPDM, NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc |
| Structure | Straight way,cross |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
| NO | NAME |
| 1 | Body |
| 2 | High Pressure Glass |
| 3 | Male |
| 4 | Lock Nut |
| 5 | Seal |
