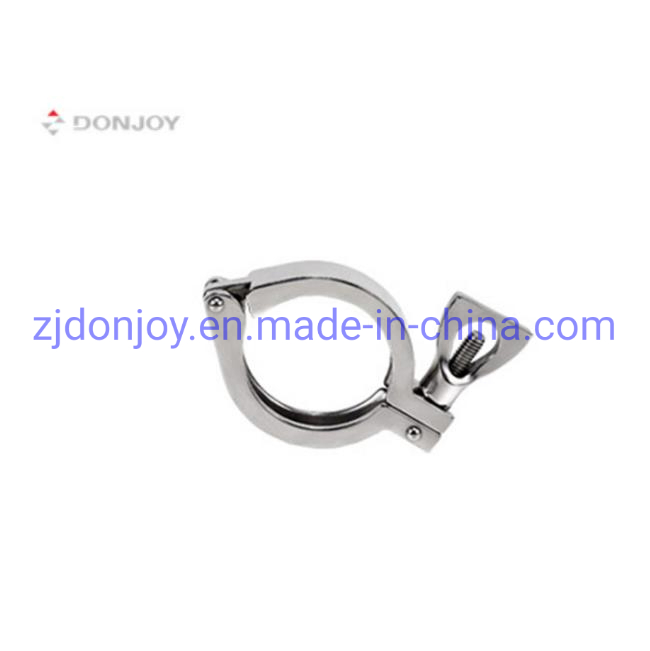

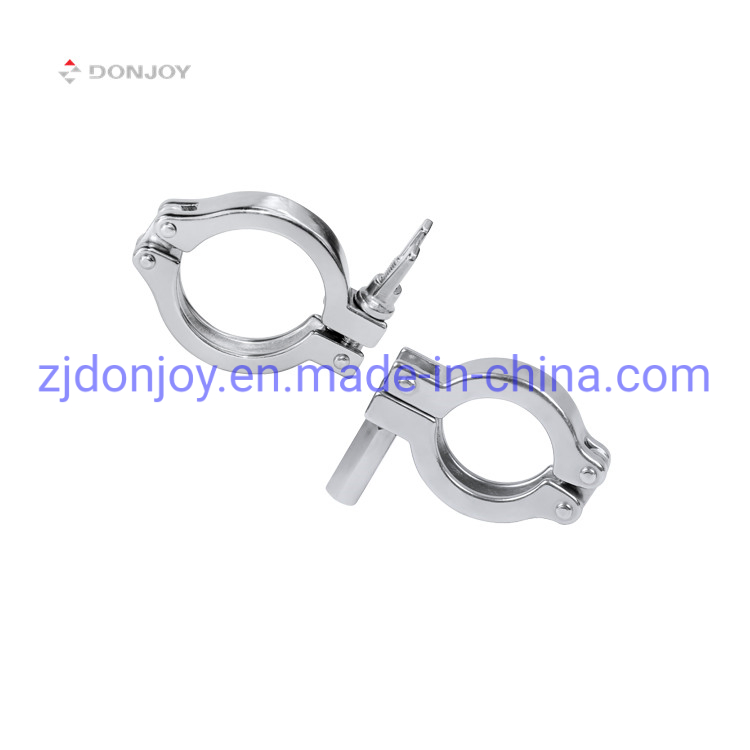

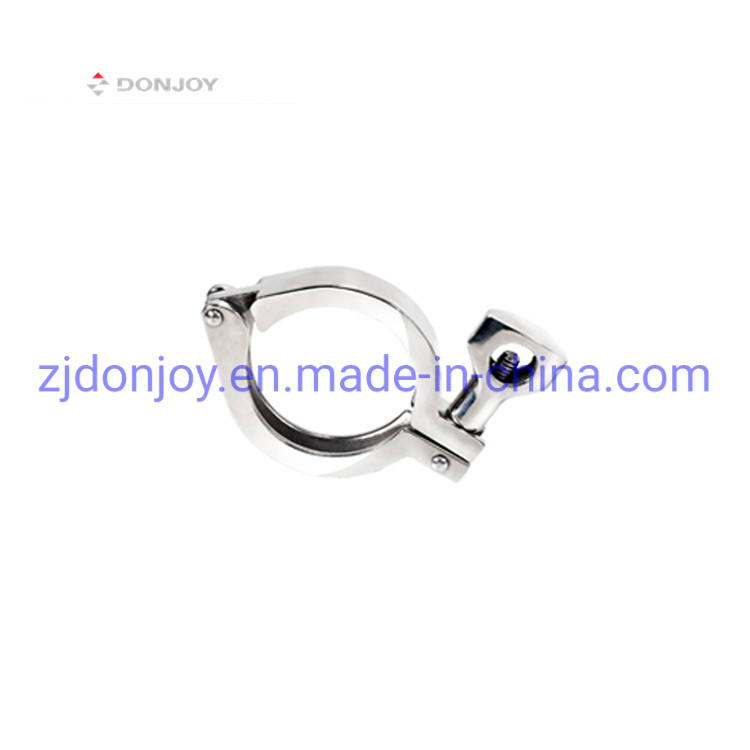

Sanitary Stainless Steel Single Pin Tri Clamp SS304
Sanitary Stainless Steel Single Pin Tri Clamp SS304Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.Our product are sold to all over the world, such as USA,Germany, Lebanon,UAE,UK,Saudi Arabia ,Cyprus,etc....We attend many exhibitions, such as IPA......
Send Inquiry
Product Description
Sanitary Stainless Steel Single Pin Tri Clamp SS304
Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.
Our product are sold to all over the world, such as USA,Germany, Lebanon,UAE,UK,Saudi Arabia
,Cyprus,etc....
We attend many exhibitions, such as IPACK IMA Exhibiton in Fieranilano, Milan-Italy, during 19-23 May 2015,booth NO. Hall7, C39; ACHEMA 2015 in Fankfute am Main Germany, during 15-19 June, booth No.AGPA/B4.
Specification
Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.
Our product are sold to all over the world, such as USA,Germany, Lebanon,UAE,UK,Saudi Arabia
,Cyprus,etc....
We attend many exhibitions, such as IPACK IMA Exhibiton in Fieranilano, Milan-Italy, during 19-23 May 2015,booth NO. Hall7, C39; ACHEMA 2015 in Fankfute am Main Germany, during 15-19 June, booth No.AGPA/B4.
Specification
| Product Name: | 3A Stanard Stainless Steel Long Type Clamped Ferrule(14AMP) |
| Body Material: | AISI304(1.4301)/AISI316L(1.4404) |
| Size: | 1"-10" |
| Connection: | Clamped |
| Finish: | Mirror finished, matt finished |
| Application: | to the stainless steel pipeling system |
| Standard: | 3A |
| Certificate: | CE, ISO9001/2008,3A |
| Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Shrink wrapped - carton - wooden case . Or as per the request of customers |
| Delivery details: | Depend on quantity,usually within 7 days after receiving T/T down payment |
| Size | Clamp Flange(mm) | Length(mm) | Thickness(mm) | Outside Diameter(mm) |
| 1/2" | 25.4 | 28.6 | 1.65 | 12.7 |
| 1/2" | 50.5 | 28.6 | 1.65 | 12.7 |
| 3/4" | 25.4 | 28.6 | 1.65 | 19.1 |
| 3/4" | 50.5 | 28.6 | 1.65 | 19.1 |
| 1" | 50.5 | 28.6 | 1.65 | 25.4 |
| 1.5" | 50.5 | 28.6 | 1.65 | 31.8 |
| 2" | 64 | 28.6 | 1.65 | 50.8 |
| 2.5" | 77.5 | 28.6 | 1.65 | 63.5 |
| 3' | 91 | 28.6 | 1.65 | 76.2 |
| 4" | 119 | 28.6 | 2.1 | 101.6 |
