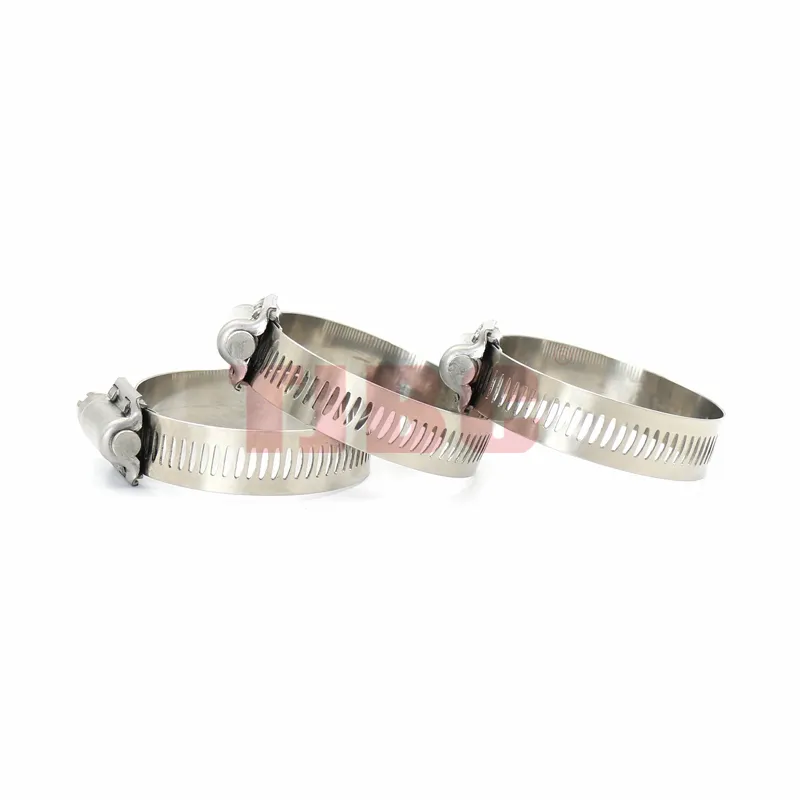

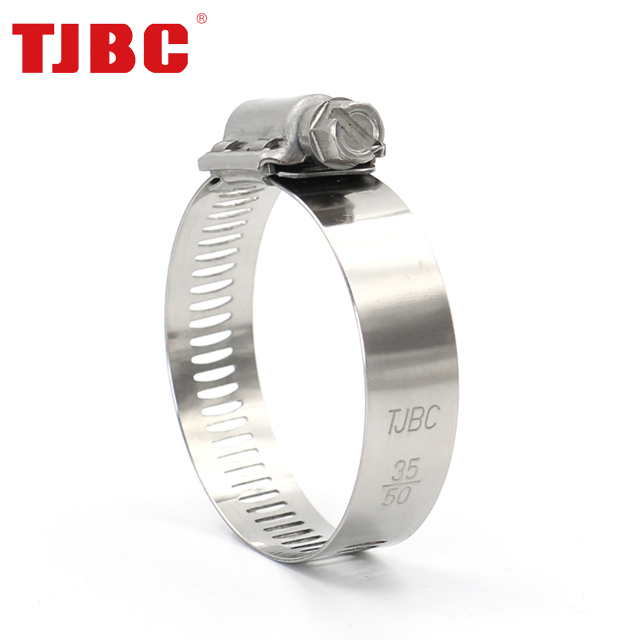

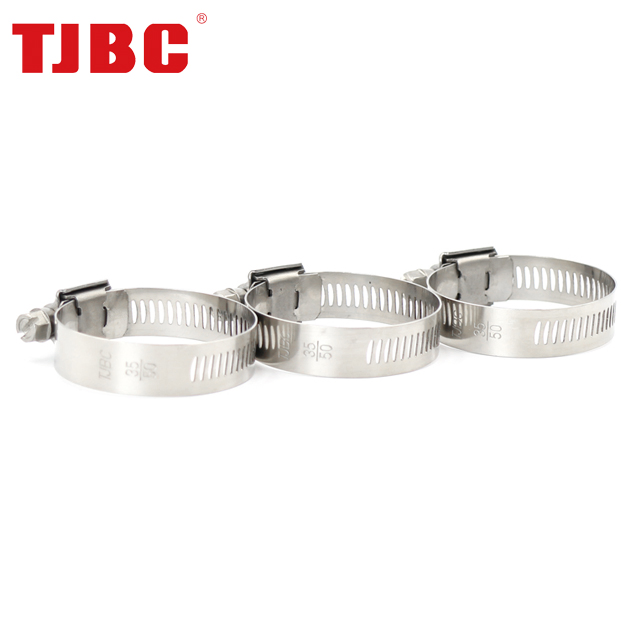

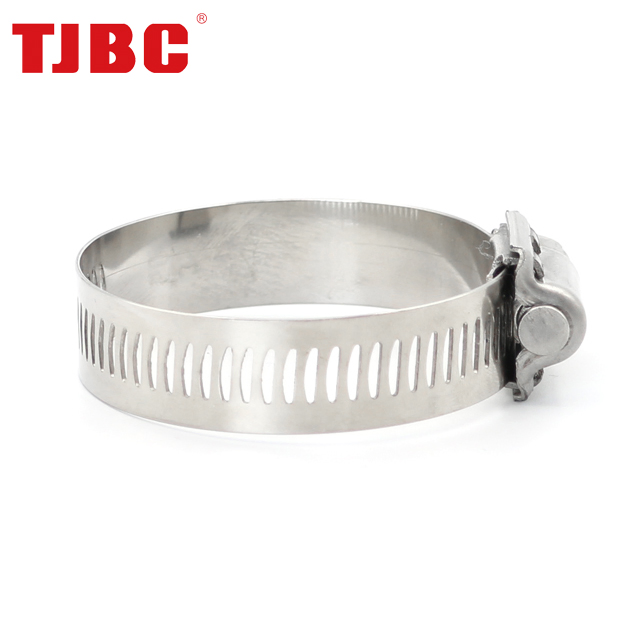

Power-Seal Worm-Drive Stainless Steel 2-PCS Housing Perforated Heavy Duty Hose Clamp for Automotive Systems, 14- 27mm
MS05&MS06 (2-pcs housing perforated hose clamp) SizeItem no.12.5mm(bandwidth 12.5mm)14.2mm(bandwidth 14.2mm)SAE nomminchW2W4W1W4611-200.44"-0.78"MS05B6MS05D6\\813-230.5"-0.91"MS05B8MS05D8\\1014-270.56"-1.06"MS05B10MS05D10\MS06D101218-320.69"-1.25"MS05B12MS......
Send Inquiry
Product Description
| MS05&MS06 (2-pcs housing perforated hose clamp) | ||||||
| Size | Item no. | |||||
| 12.5mm(bandwidth 12.5mm) | 14.2mm(bandwidth 14.2mm) | |||||
| SAE no | mm | inch | W2 | W4 | W1 | W4 |
| 6 | 11-20 | 0.44"-0.78" | MS05B6 | MS05D6 | \ | \ |
| 8 | 13-23 | 0.5"-0.91" | MS05B8 | MS05D8 | \ | \ |
| 10 | 14-27 | 0.56"-1.06" | MS05B10 | MS05D10 | \ | MS06D10 |
| 12 | 18-32 | 0.69"-1.25" | MS05B12 | MS05D12 | \ | MS06D12 |
| 16 | 21-38 | 0.81"-1.5" | MS05B16 | MS05D16 | MS06A16 | MS06D16 |
| 20 | 21-44 | 0.81"-1.75" | MS05B20 | MS05D20 | MS06A20 | MS06D20 |
| 24 | 27-51 | 1.06"-2" | MS05B24 | MS05D24 | MS06A24 | MS06D24 |
| 28 | 33-57 | 1.31"-2.25" | MS05B28 | MS05D28 | MS06A28 | MS06D28 |
| 32 | 40-64 | 1.56"-2.5" | MS05B32 | MS05D32 | MS06A32 | MS06D32 |
| 36 | 46-70 | 1.81"-2.75" | MS05B36 | MS05D36 | MS06A36 | MS06D36 |
| 40 | 50-76 | 2.06"-3" | MS05B40 | MS05D40 | MS06A40 | MS06D40 |
| 44 | 59-83 | 2.31"-3.25" | MS05B44 | MS05D44 | MS06A44 | MS06D44 |
| 48 | 65-89 | 2.56"-3.5" | MS05B48 | MS05D48 | MS06A48 | MS06D48 |
| 52 | 72-95 | 2.81"-3.75 | MS05B52 | MS05D52 | MS06A52 | MS06D52 |
| 56 | 78-102 | 3.06"-4" | MS05B56 | MS05D56 | MS06A56 | MS06D56 |
| 60 | 84-108 | 3.31"-4.25" | MS05B60 | MS05D60 | MS06A60 | MS06D60 |
| 64 | 91-114 | 3.56"-4.5" | MS05B64 | MS05D64 | MS06A64 | MS06D64 |
| 72 | 103-127 | 4.06"-5" | MS05B72 | MS05D72 | MS06A72 | MS06D72 |
| 80 | 117-140 | 4.62"-5.5" | MS05B80 | MS05D80 | MS06A80 | MS06D80 |
| 88 | 130-152 | 5.12"-6" | MS05B88 | MS05D88 | MS06A88 | MS06D88 |
| 96 | 141-165 | 5.56"-6.5" | MS05B96 | MS05D96 | MS06A96 | MS06D96 |
| 104 | 157-178 | 6.18"-7" | MS05B104 | MS05D104 | MS06A104 | MS06D104 |
| Material | Band | Housing | Screw | suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | MS05 5.3Nm MS06 7.5Nm MS08 11Nm |
| W2 | AISI 301SS | AISI 301SS | Zinc plated steel | |
| W4 | AISI 304SS | AISI 304SS | AISI 304SS |
