Product Description

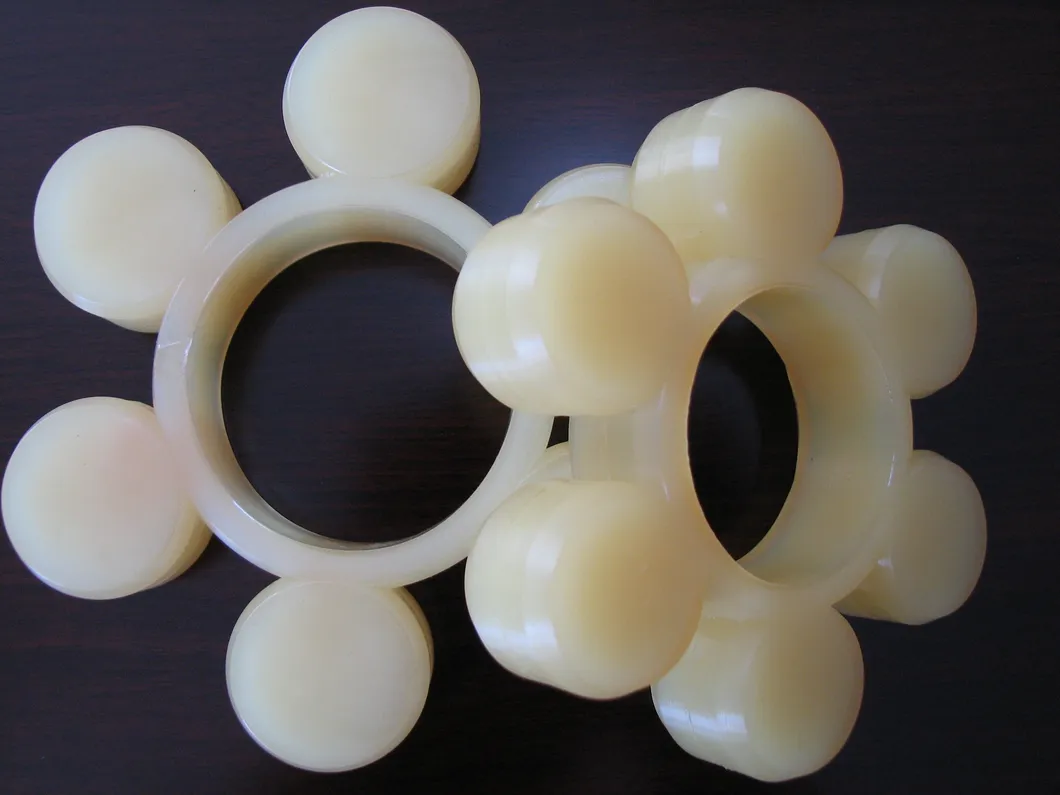

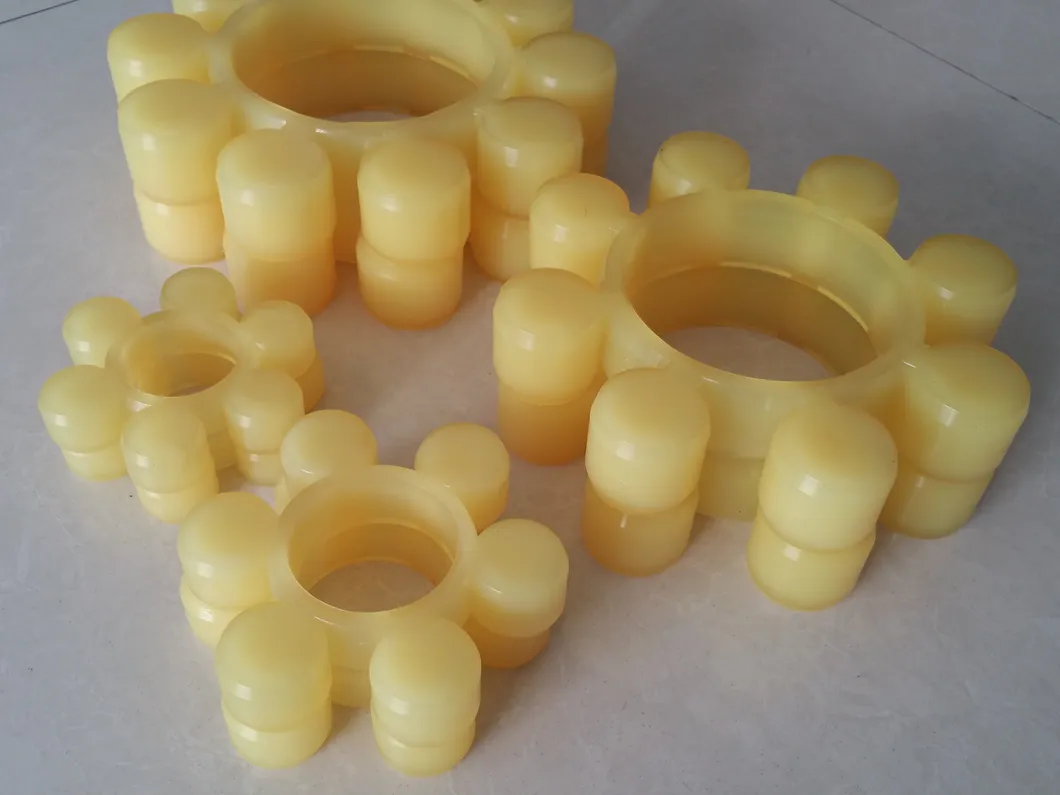

Mt PU Coupling Elements 90-98 Shore A

Advabtages:
1. Extremely resistant to wear, oil, ozone and ageing. Also resistant to hydrolysis (ideal for tropical climates)
2. Protect the drive against dynamic overload.
3. Good physical properties.
4. Easy installation .
5. OEM

Technical Data
Operating conditions
Temperature: -40~+100°C
Torque: 22.4-2500NM

Material
Material: NBR, CPU/TPU
Hardness: 70, 90, 95, 98 Shore A

Specifications:
product advantage	1. Widely used in all kinds of water pumps
	2. Easy installation
Material composition	TPU, NBR
Working Temperature	-30ºC~+100ºC
Product hardness(shore A)	TPU:90, 95, 98+-2shore A, NBR:70+/-5shore A
Torque	22.4-2500NM
Size	any regular size or based on customer request
Color	black or natural
Logo	Yierka or customer logo is available
working midea	water, oil
OEM&ODM	welcome
Sample lead time	Within 7 days
Production lead time	15 days or as per customers' order quantity
Ship menthods	by ocean/air or express is okay
Delivery port	Sanhe, Beijing or Shanghai
Payment terms	1.T/T 2. L/C 3. Western Union
Our Advantage:	1.nearly 10 years manufacturing experience
	skilled workers, technology are abuntant.

	2.In 1991,we cooperate with Chinese Academy of Science conducting the cooperation for seal technology applying in the mine, hydraulic and pneumatic system and engineering system.

Normal Size
part number	ID(mm)	OD(mm)	H(mm)
SBT-40	18	40	10
SBT-45	20	45	10
SBT-56	27	56	15
SBT-62	30	62	15
SBT-65	30	65	15
SBT-75	35	75	15
SBT-79	40	79	15
SBT-90	45	90	18
SBT-94	45	94	18
SBT-104	55	104	23
SBT-108	55	108	24
SBT-126	60	126	28
SBT-133	60	133	25
SBT-154	79	154	27
SBT-170	80	170	28
SBT-175	85	175	30
SBT-180	90	180	30
SBT-200	100	200	36

standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
