ISO 7241 a Series Hydraulic Quick Connect Coupling for Oil/Water Hose Fitting Connector

Product Description

ISO 7241 A Series hydraulic quick connect coupling for oil/water

Product Introduction:

Body Size(in)	1/4(02)	3/8(03)	1/2(04)	5/8(06)	3/4(08)	1(10)	1-1/2(12)	2(16)
Rated Pressure(PSI)	5000	3000	3000	3000	3000	3000	3000	3000
Rated Flow(GPM)	3	6	12	20	28	50	80	100
Spillage (ML)	0.006	0.012	0.02	0.026	0.032	0.035	0.05	0.1
(max. per disconnect)
Temperature Range	-20ºC to +120ºC
Standard seal material NBR

1.Material:
Material of Female Socket: Zinc- Chromate plated Steel
Material of Male Plug: Zinc- Chromate plated Steel
2. Advantage: Critical Parts are hardened for durability.
Poppet valves are available to prevent uncoupled leakage.
Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Sizes: NPT 1/4, 3/8, 1/2, 3/4, 1. It's OK to order Female Socket and Male Plug together or seperately.
4. Standard: ISO7241-1 Series A
Interchangeable with:
PARKER 6600 series
FASTER ANV series
AEROQUIP 5600 series
HANSEN HA 15000 series
What's Included:

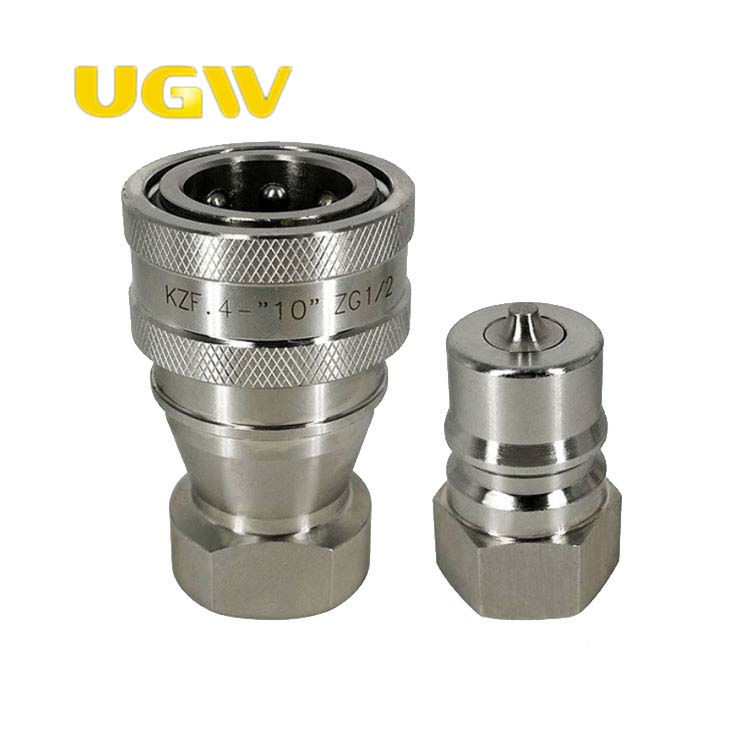

* Female Coupler

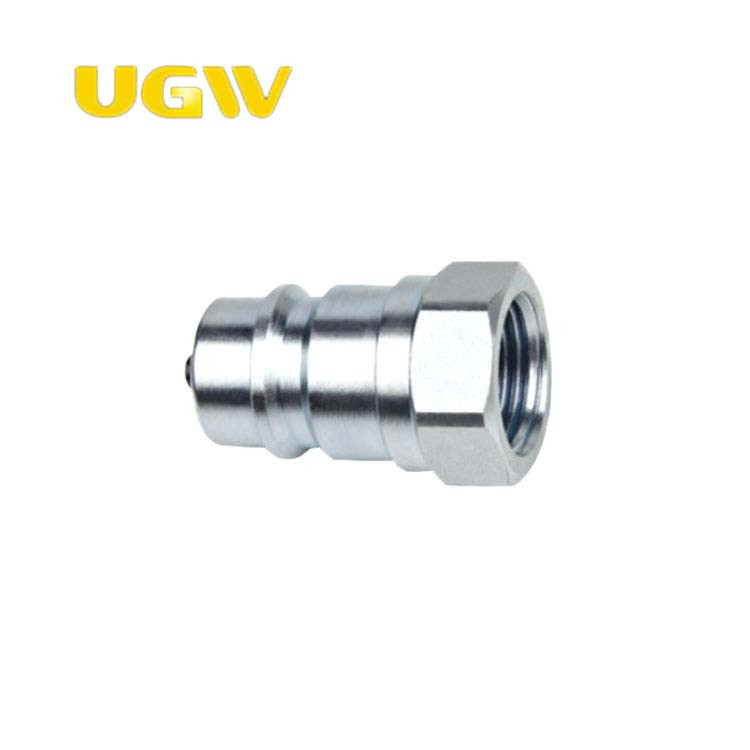

* Male Coupler

Main Material and Series:

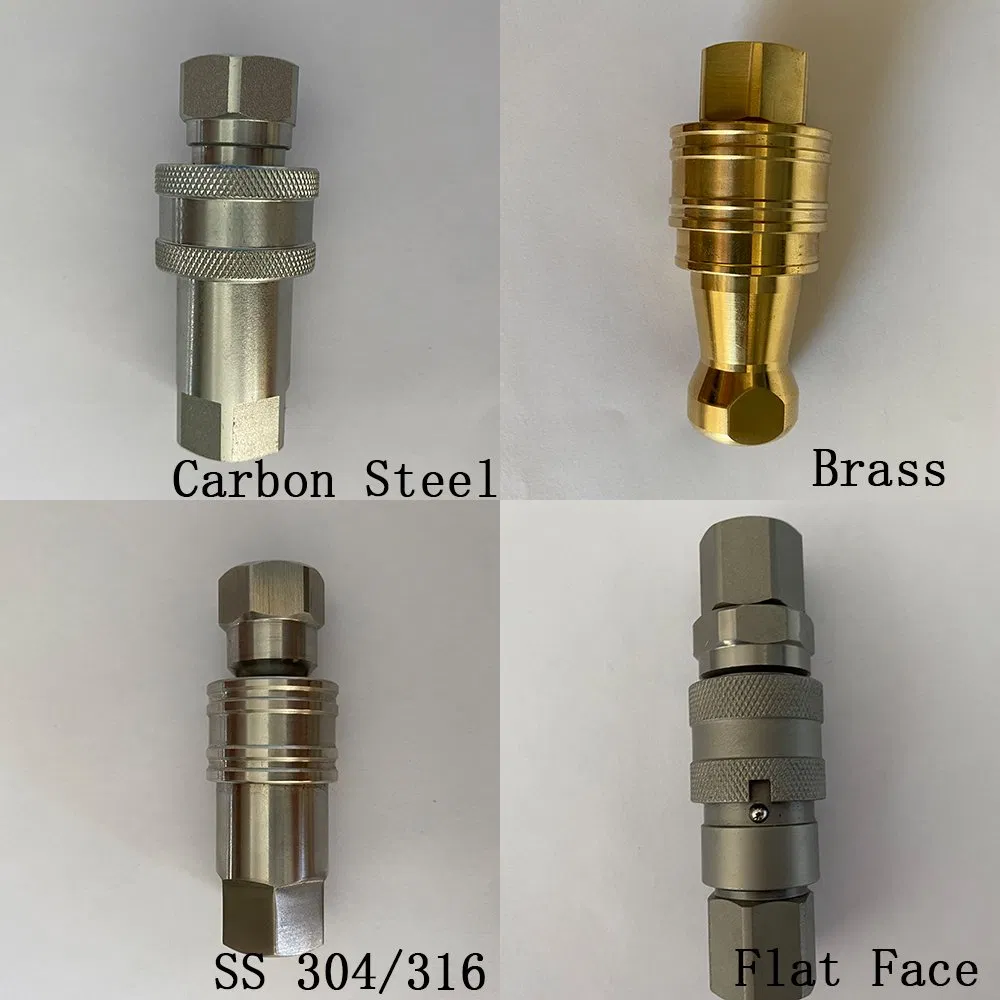

Carbon steel,Brass, Stainless steel 304/316
ISO 7241A Series ,ISO 7241B Series ,FLAT FACE COUPLING

Our Service: We can crimp hose assembly for our customers

Application:
Mainly used for construction equipment, hydraulic machinery, oil euipment and other hydraulic applications.

FAQ:
Conventional packaging: carton, can be customized according to customer needs;
Transportation: express, sea and air freight are support
Delivery Time:
1.If we have stock,we'll send out to you in a week;
2. Generally, it will take about 20 days. The specific delivery date will be negotiated according to your order.
MOQ:100
(If the quantity you need is less than 100 pieces, please feel free to make an inquiry with us. If we have stock, you can also
order.)
Payment:LC/TT
our payment usual is T/T ,L/C ,if you need other payment , please inform us
