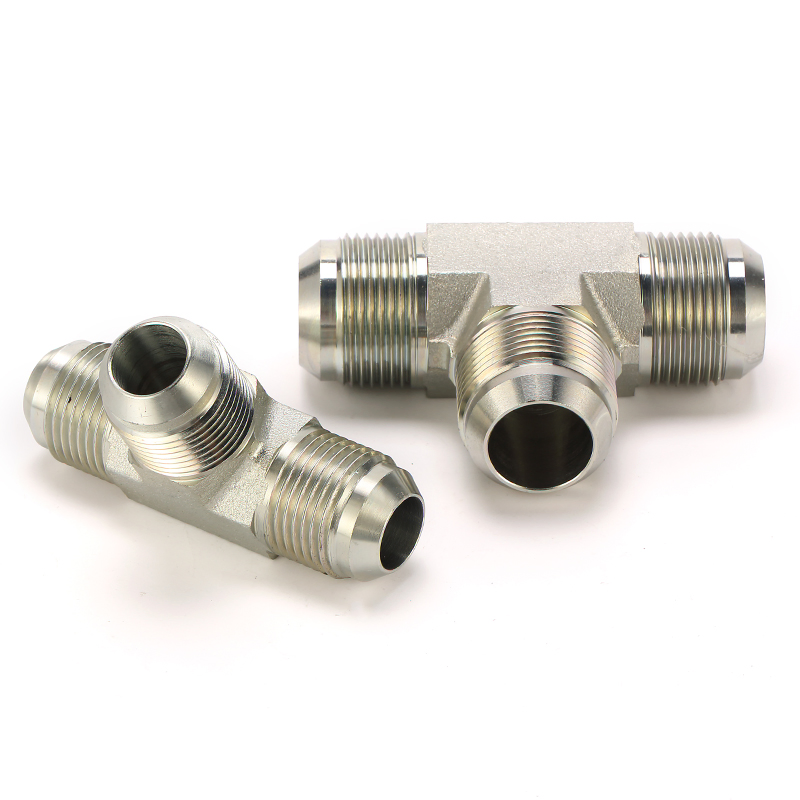

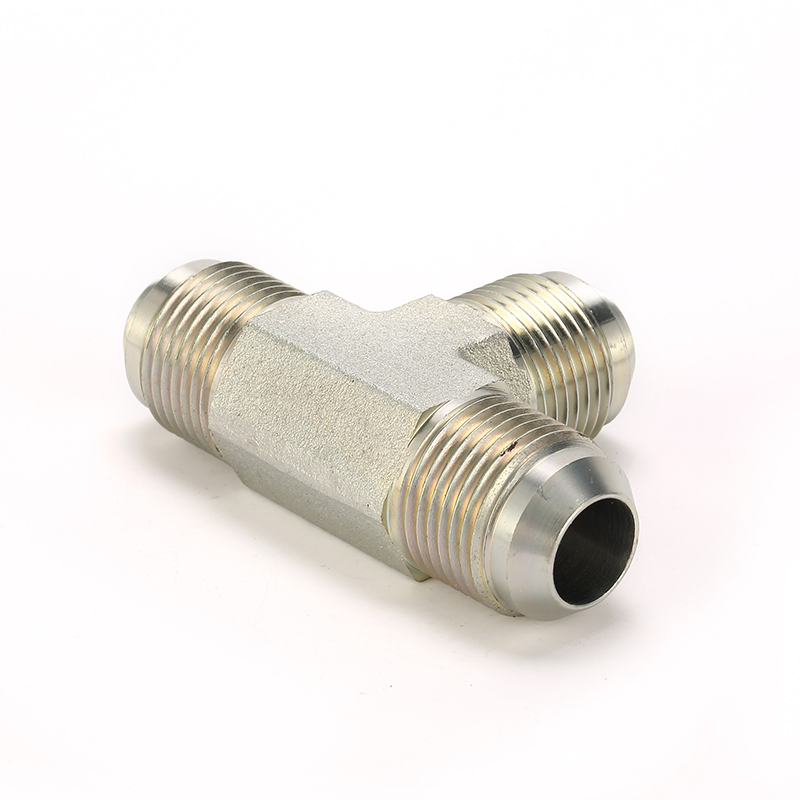

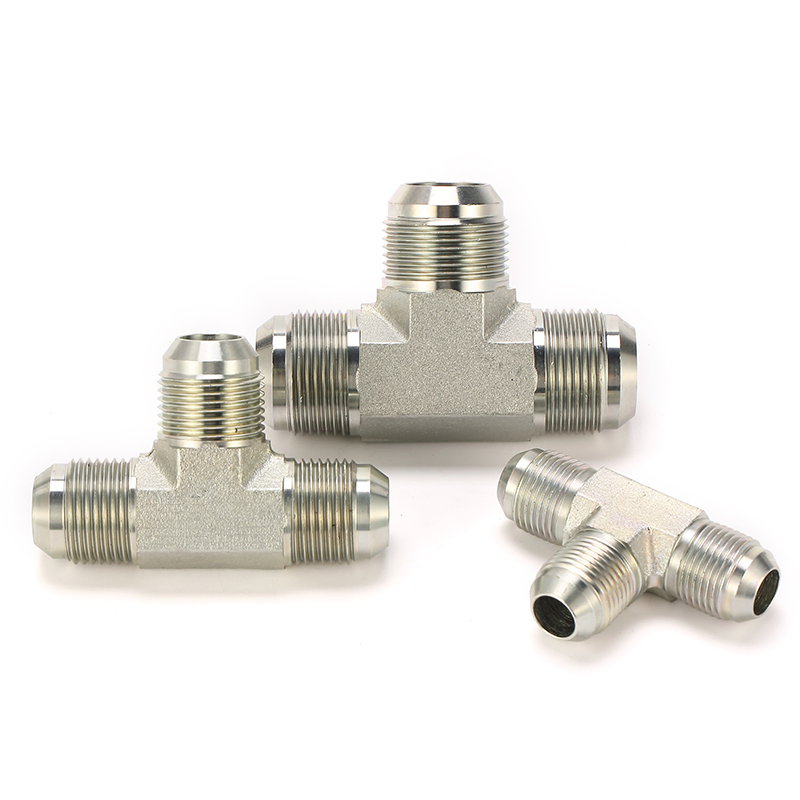

Hydraulic Hose Adapter Tee Jic Male Run Tee
Quick DetailsBrand Name: PEHELPlace of Origin:Zhejiang,China(Mainland)Delivery Detail:1-2weeksPackage Detail:Nylon plastic+corrugated carton +Multiple plywood caseCustom-orientated Service: produce according to your drawings or sample, offer custom-design Our advantage: 1. High quality ......
Send Inquiry
Product Description
Quick Details
Brand Name: PEHEL
Place of Origin:Zhejiang,China(Mainland)
Delivery Detail:1-2weeks

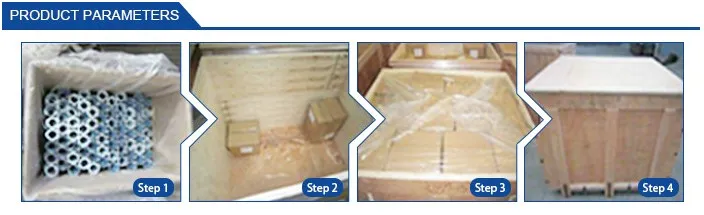

Package Detail:Nylon plastic+corrugated carton +Multiple plywood case
Custom-orientated Service: produce according to your drawings or sample, offer custom-design
Our advantage: 1. High quality 2. Rich inventory
3. Prompt delivery 4. Reasonable price
| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | G | A | B | C | S1 | |
| PAJ-04 | 7/16"X20 | 7/16"X20 | 7/16"X20 | 24.5 | 24.5 | 24.5 | 11 |
| PAJ-06-04 | 7/16"X20 | 9/16"X18 | 7/16"X20 | 26.6 | 26.9 | 26.6 | 14 |
| PAJ-05 | 1/2"X20 | 1/2"X20 | 1/2"X20 | 26 | 26 | 26 | 14 |
| PAJ-04-06 | 9/16"X18 | 7/16"X20 | 9/16"X18 | 26.9 | 26.6 | 26.9 | 14 |
| PAJ-06 | 9/16"X18 | 9/16"X18 | 9/16"X18 | 26.9 | 26.9 | 26.9 | 14 |
| PAJ-08 | 3/4"X16 | 3/4"X16 | 3/4"X16 | 32 | 32 | 32 | 19 |
| PAJ-06-08 | 3/4"X16 | 9/16"X18 | 3/4"X16 | 32 | 30 | 32 | 19 |
| PAJ-10 | 7/8"X14 | 7/8"X14 | 7/8"X14 | 37.8 | 37.8 | 37.8 | 22 |
| PAJ-12 | 1.1/16"X12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 44.2 | 44.2 | 27 |
| PAJ-16 | 1.5/16"X12 | 1.5/16"X12 | 1.5/16"X12 | 49 | 49 | 49 | 33 |
| PAJ-16-12-16 | 1.5/16"X12 | 1.1/16"X12 | 1.5/16"X12 | 49 | 48 | 49 | 33 |
| PAJ-20 | 1.5/8"X12 | 1.5/8"X12 | 1.5/8"X12 | 56.5 | 56.5 | 56.5 | 41 |
| PAJ-24 | 1.7/8"X12 | 1.7/8"X12 | 1.7/8"X12 | 63 | 63 | 63 | 48 |
| PAJ-32 | 2.1/2"X12 | 2.1/2"X12 | 2.1/2"X12 | 78 | 78 | 78 | 63 |

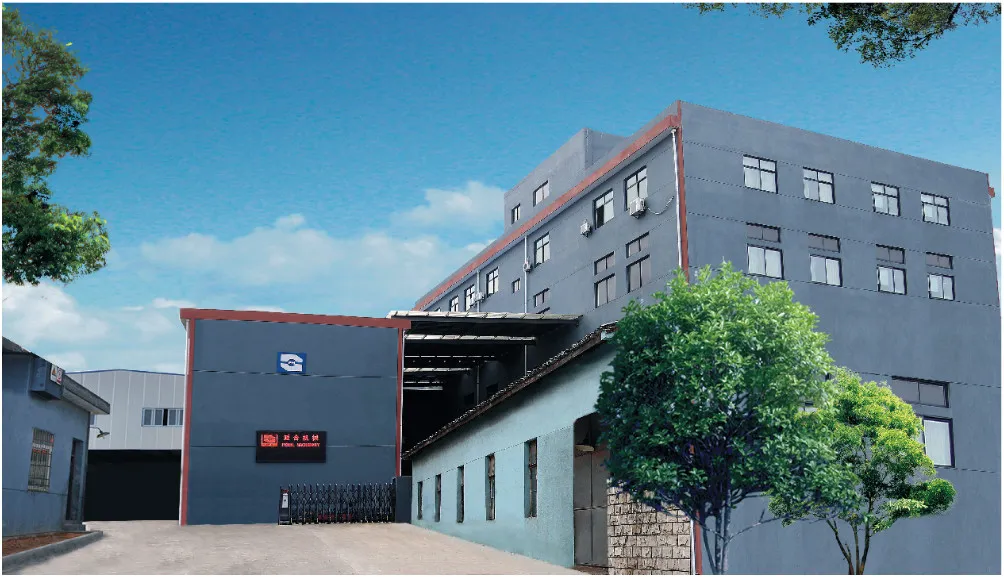

Ningbo Yinzhou Pehel Machinery Co.,Ltd (originally Ningbo Yinzhou Hengxi Dongming Machinery Factory) has been engaged in hydraulic components' design and production for fifteen years and has passed ISO9001 Quality Certificate among the first. We have own import & export license.
1. Do you have products in stock?
Yes, for most porducts, we have.
2. Can you produce Non standard product?
Yes, we can produce products as your requirements (according to your sample or drawing)
3. What is your payment terms?
Regularly,our payment term is : 30% deposit advance the producing, 70% balance before shiping.
4.Can you accept LC payment?
Yes, we can.
5.Can you provide samples?
Yes.
Please feel free to contact me if you're interested in our products.
Call me, we can talk details.
