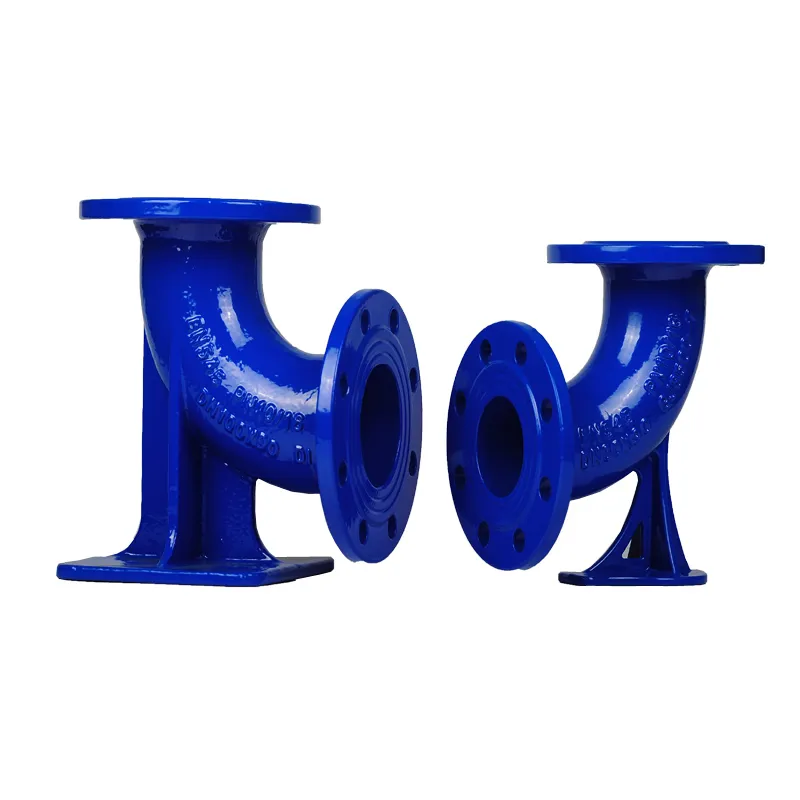

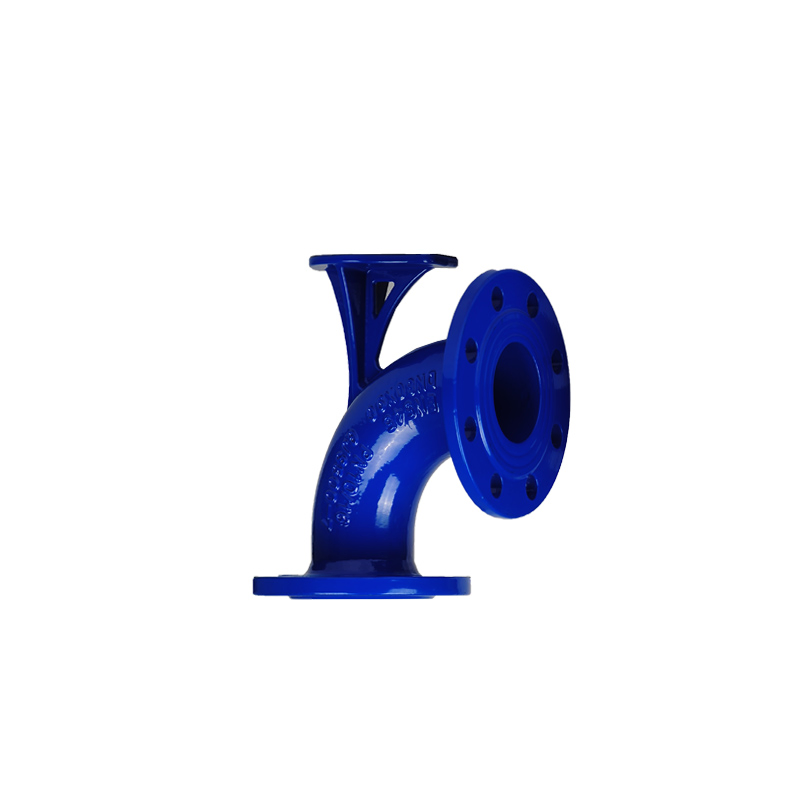

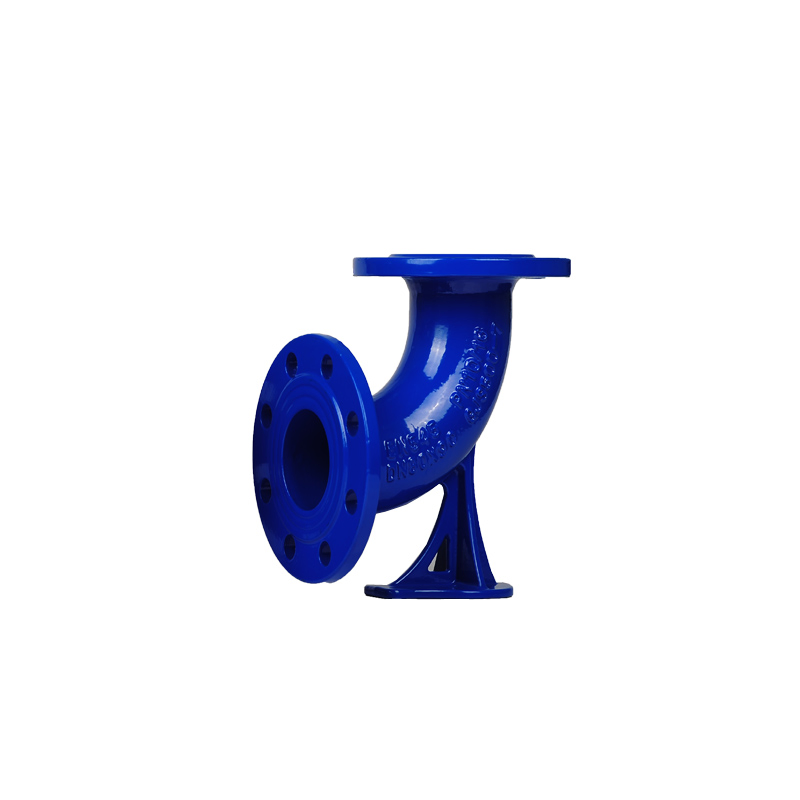

Hot Selling Ductile Iron Compact Double Flanged Duckfoot Bend N80 Flanged Pipe Fittings

Product Description

Welcome to SYI Group

Product Description----- SYI Group
ISO 2531 / EN 545 / EN 598 / GB 13295

1), Product Information
Hot Selling Ductile Iron Compact Double Flanged Duckfoot Bend N80 Flanged Pipe Fittings

Material
Ductile iron grade 500-7 / 450-12 in accordance with ISO 1083
Flange
P 10, PN16 or PN25 drilling in accordance with ISO 7005-2 / EN 1092-2
Fluid Temperature
0°C-50°C, excluding frost
Coating
External coatings
zinc + bitumen painting liquid epoxy resin painting epoxy applied by FBE according to customers' requirements
Reference Rules
Dimensions and testing in accordance with ISO 2531 / EN 545
Use
Jointed by the bolts, nuts and sealed by the gaskets.

The ductile iron pipe fittings manufactured by SYI foundry are mainly used for transferring the drinkable water. With special ductile iron material, this series of pipe fittings can also be used for transferring the acid in the acid plant or transferring slurry. SYI Foundry has been supplying Pipe Fittings for over 10 years and Pipe Fitting surface shall be smooth and free from sand holes, blow holes, distortion or any other defects. Hundreds of patterns are ready and Max. Dia. Is 1.2 meters with max. Height of 2 meters.
Hot Selling Ductile Iron Compact Double Flanged Duckfoot Bend N80 Flanged Pipe Fittings

2), Material
* Ductile Iron
* Grey Iron
3), Process
* Automatics machine lines
* Resin Sand
* Molding Boards
* Green Sand with hand molding
4), Inscription Style
* SYI Foundry
* As per customers' requests
* Standard Inscription
5), Packing
* Wood pallet
* Steel pallet
* As per customers' requirements
6), Inspection
* Foundry in-house
* Third Party inspection available upon request
Hot Selling Ductile Iron Compact Double Flanged Duckfoot Bend N80 Flanged Pipe Fittings
