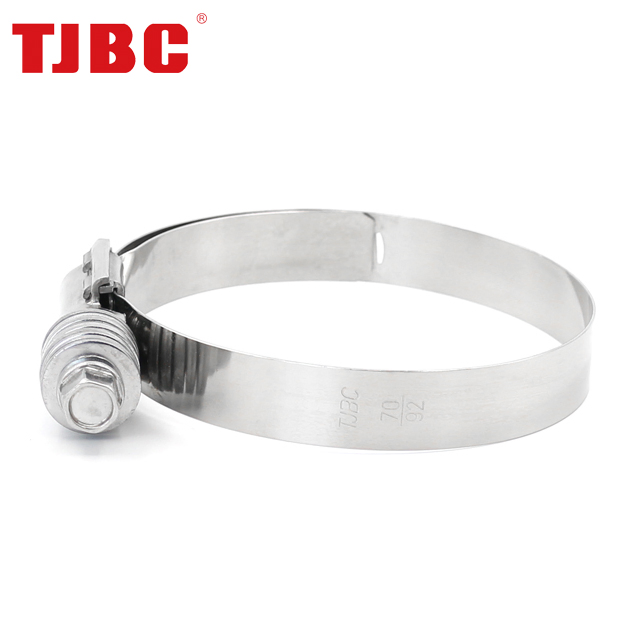

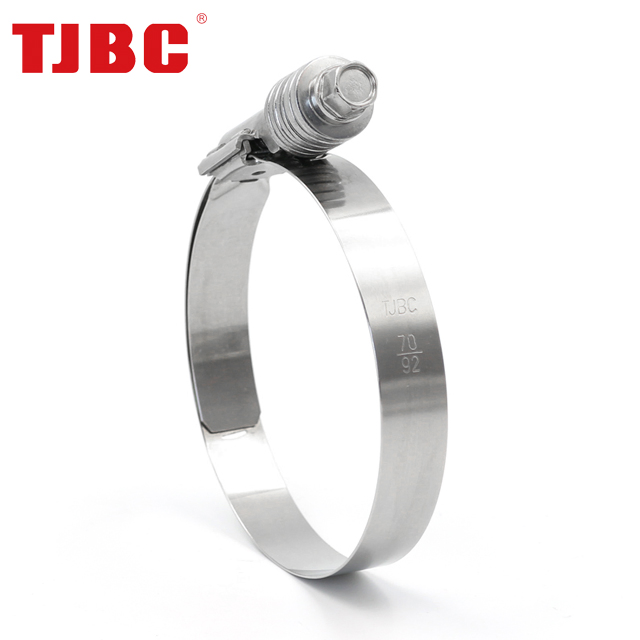

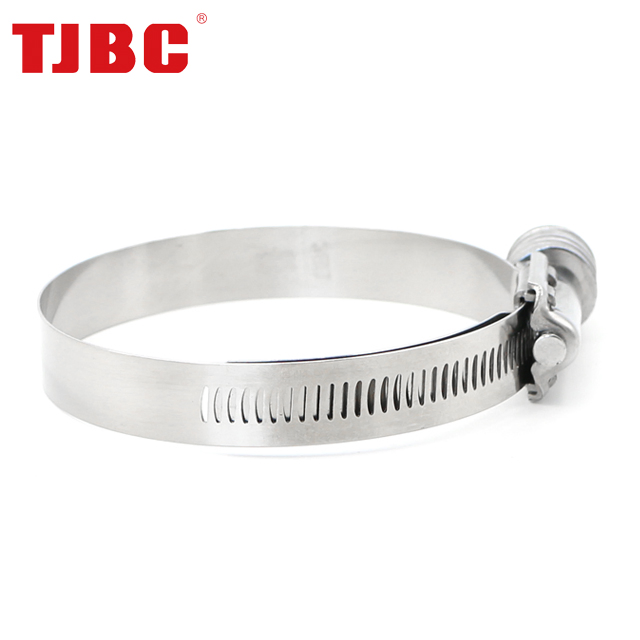

High Pressure W2 Stainless Steel Heavy Duty American Type Constant Tension Hose Tube Clamp, 15.8mm Bandwidth, 70-92mm
MS09 15.8mm(15.8mm Constant Tension Clamp)SizeItem no. mminchW2W4suggestedinstalltorque26-451"*1-3/4"MS09B2645MS09D264511Nm32-541-1/4"*2-1/8"MS09B3254MS09D325445-671-3/4"*2-5/8"MS09B4567MS09D456757-792-1/4"*3-1/8"MS09B5779MS09D577970-922-3/4"*3-5/8"M......
Send Inquiry
Product Description
| MS09 15.8mm (15.8mm Constant Tension Clamp) | ||||
| Size | Item no. | |||
| mm | inch | W2 | W4 | suggested installtorque |
| 26-45 | 1"*1-3/4" | MS09B2645 | MS09D2645 | 11Nm |
| 32-54 | 1-1/4"*2-1/8" | MS09B3254 | MS09D3254 | |
| 45-67 | 1-3/4"*2-5/8" | MS09B4567 | MS09D4567 | |
| 57-79 | 2-1/4"*3-1/8" | MS09B5779 | MS09D5779 | |
| 70-92 | 2-3/4"*3-5/8" | MS09B7092 | MS09D7092 | |
| 83-105 | 3-1/4"*4-1/8" | MS09B83105 | MS09D83105 | |
| 96-118 | 3-3/4"*4-5/8" | MS09B96118 | MS09D96118 | |
| 108-130 | 4-1/4"*5-1/8" | MS09B108130 | MS09D108130 | |
| 121-143 | 4-3/4"*5-5/8" | MS09B121143 | MS09D121143 | |
| 134-156 | 5-1/4"*6-1/8" | MS09B134156 | MS09D134156 | |
| 146-168 | 5-3/4"*6-5/8" | MS09B146168 | MS09D146168 | |
| 159-181 | 6-1/4"*7-1/8" | MS09B159181 | MS09D159181 | |
| 172-194 | 6-3/4"*7-5/8" | MS09B172194 | MS09D172194 | |
| 184-206 | 7-1/4"*8-1/8" | MS09B184206 | MS09D184206 | |
| 197-219 | 7-3/4"*8-5/8" | MS09B197219 | MS09D197219 | |
| 210-232 | 8-1/4"*9-1/8" | MS09B210232 | MS09D210232 | |
| Material | Band | Housing | Screw | washers |
| W2 | AISI 301SS/304SS | AISI 301SS/304SS | Zinc plated steel | AISI 410ss |
| W4 | AISI 301SS/304SS | AISI 301SS/304SS | AISI 301SS/304SS | AISI 410ss |
