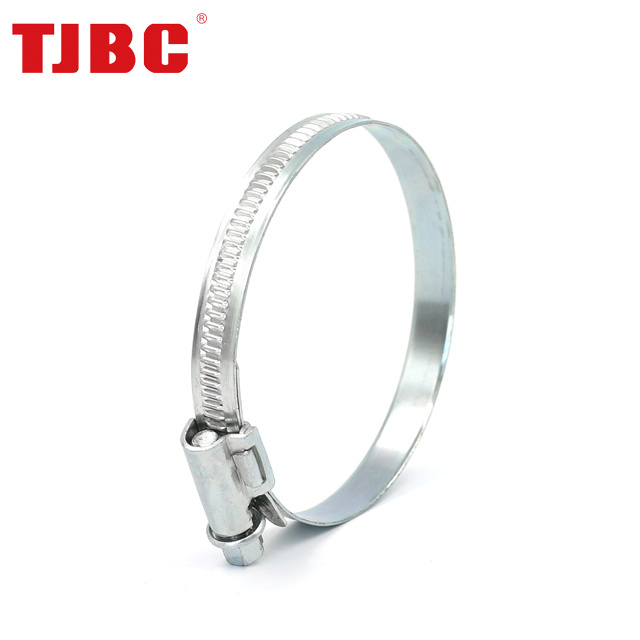

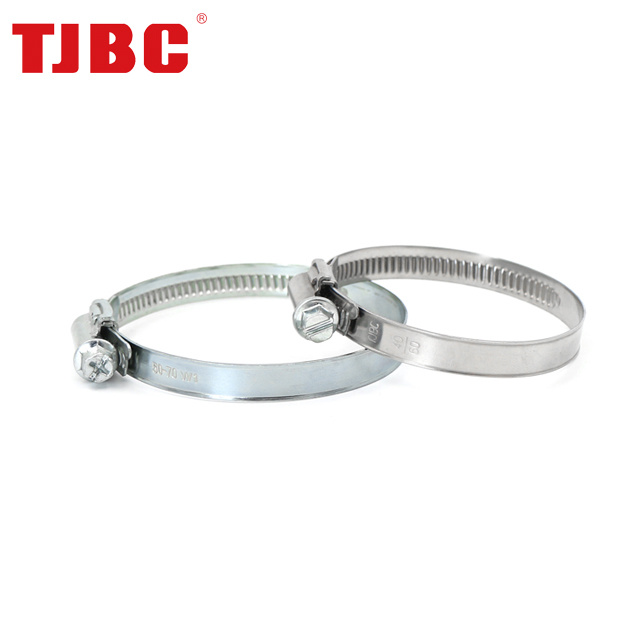

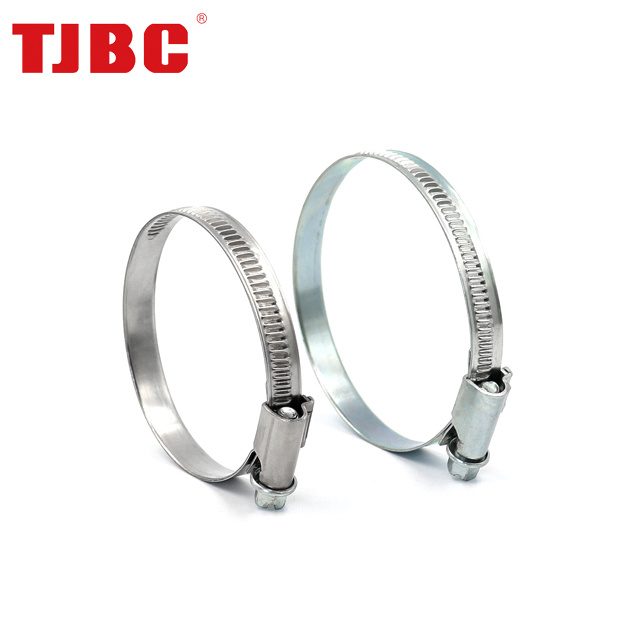

DIN3017 Non-Perforated Worm Gear Adjustable Welding German Type Hose Clip for Automotive, 12mm Bandwidth , 25-40mm

12mm non-perforated type without welded housing designSizeItemNopcs/bagpcs/cartonmmW1W2W3W4W516-27DS03A121627DS03B121627DS03C121627DS03D121627DS03E1216275010020-32DS03A122032DS03B122032DS03C122032DS03D122032DS03E12203250100025-40DS03A122540DS03B122540DS03C122540DS03D122540DS03E1225405050030-45DS03A1......

Send Inquiry

Product Description

12mm non-perforated type without welded housing design
Size	ItemNo					pcs/bag	pcs/carton
mm	W1	W2	W3	W4	W5	pcs/bag	pcs/carton
16-27	DS03A121627	DS03B121627	DS03C121627	DS03D121627	DS03E121627	50	100
20-32	DS03A122032	DS03B122032	DS03C122032	DS03D122032	DS03E122032	50	1000
25-40	DS03A122540	DS03B122540	DS03C122540	DS03D122540	DS03E122540	50	500
30-45	DS03A123045	DS03B123045	DS03C123045	DS03D123045	DS03E123045	50	500
40-60	DS03A124060	DS03B124060	DS03C124060	DS03D124060	DS03E124060	25	500
50-70	DS03A125070	DS03B125070	DS03C125070	DS03D125070	DS03E125070	10	500
60-80	DS03A126080	DS03B126080	DS03C126080	DS03D126080	DS03E126080	10	250
70-90	DS03A127090	DS03B127090	DS03C127090	DS03D127090	DS03E127090	10	250
80-100	DS03A1280100	DS03B1280100	DS03C1280100	DS03D1280100	DS03E1280100	10	250
90-110	DS03A1290110	DS03B1290110	DS03C1290110	DS03D1290110	DS03E1290110	10	250
100-120	DS03A12100120	DS03B12100120	DS03C12100120	DS03D12100120	DS03E12100120	10	250
110-130	DS03A12110130	DS03B12110130	DS03C12110130	DS03D12110130	DS03E12110130	10	200
120-140	DS03A12120140	DS03B12120140	DS03C12120140	DS03D12120140	DS03E12120140	10	200
130-150	DS03A12130150	DS03B12130150	DS03C12130150	DS03D12130150	DS03E12130150	10	200
140-160	DS03A12140160	DS03B12140160	DS03C12140160	DS03D12140160	DS03E12140160	10	200
150-170	DS03A12150170	DS03B12150170	DS03C12150170	DS03D12150170	DS03E12150170	10	200
160-180	DS03A12160180	DS03B12160180	DS03C12160180	DS03D12160180	DS03E12160180	10	200
170-190	DS03A12170190	DS03B12170190	DS03C12170190	DS03D12170190	DS03E12170190	10	200
180-200	DS03A12180200	DS03B12180200	DS03C12180200	DS03D12180200	DS03E12180200	10	200
190-210	DS03A12190210	DS03B12190210	DS03C12190210	DS03D12190210	DS03E12190210	10	200

Material	Band	Housing	Screw	suggested install torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	7.0Nm
W2	AISI 430SS	AISI 430SS	Zinc plated steel	7.0Nm
W3	AISI 430SS	AISI 430SS	AISI 410SS	φx≤φ32 6.0Nm φx>φ32 6.4Nm
W4	AISI 304SS	AISI 304SS	AISI 304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS
