China ASTM B363 Gr. 7 Pipe Fitting Titanium Metal Stub End

Product Description

Ruiyang company supply complete industrial Titanium/stainless steel/nickle alloy pipe fittings. forged, seamless and welded fitting are available

Types pipe fittings

Coupling Flexible	Coupling Rigid Cross / 4-Way Collar/Stub end
eblows	Elbow 45 Elbow - 90 Elbow - Other Angle Elbow Reducing Expansion Joint/Coupling
Reducer	Reducer Concentric Reducer - Eccentric Return Bend
Pipe Cap	Pipe Cap Pipe Plug Pipe Union
Reducer	concentric and esscentric
Tee	equal or unequal
Nipple	Nipple(Hex)
bend pipe	customed

Sizes: From 1/2to 48 (Seamless Pipe Fittings), From16to 72 (welded with seam Pipe Fittings)
Wall Thickness: Sch5S to Sch XXS

Commodity	Titanium Pipe Fitting( Elbow, Ubend, Reducer, Tee, Stub End etc.)
Process method	Forged, Hot extrusion, Welded,
Materials Grades	WP1, 2, 3, 7,12, 16 etc
Standards:	ASTM B363, ANIS B16.5, ANSI B16.47 , ASTM B381 or closer.
Size	NPS 1/2" to 48"(Seamless Pipe Fittings) ,16″to 72″ (welded Pipe Fittings) Wall Thickness: Sch5s to Sch XXS as per drawing.
Condition	Annealed or as requirement
Inspection Testing	Mechanical Test, Hardness Test Ultrasonic Test, PT, MT, Hydraulic Test or as required
Certificate	EN 1024 3.1/ 3.1B/ 3.2, PED, DNV, TUV.third party checking accept
Packing	Wooden case/ Steel framed plywood case/ simple packing.
Delivery Time	By mutual agreement.

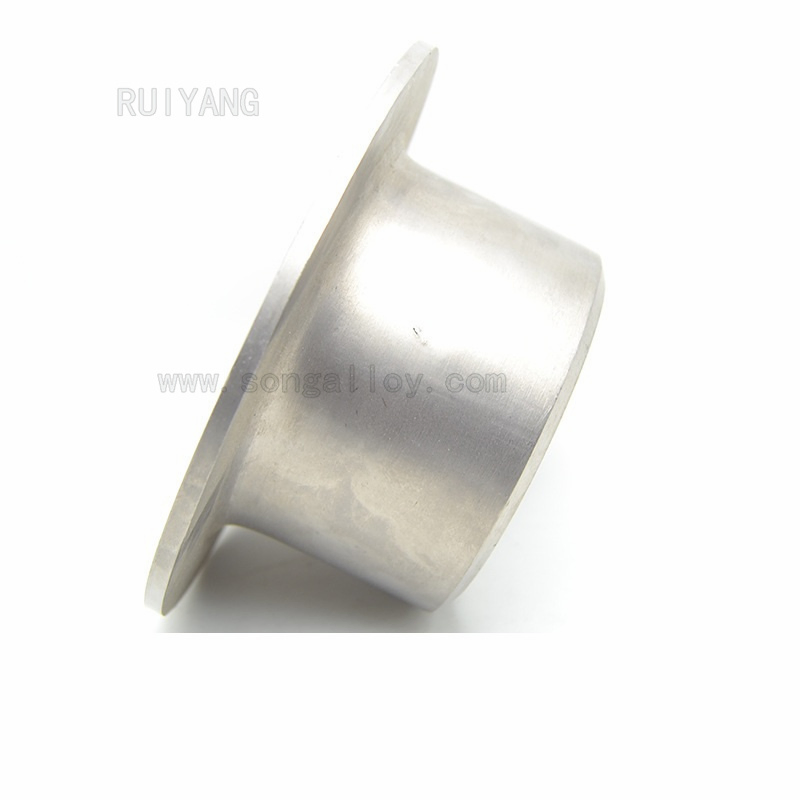

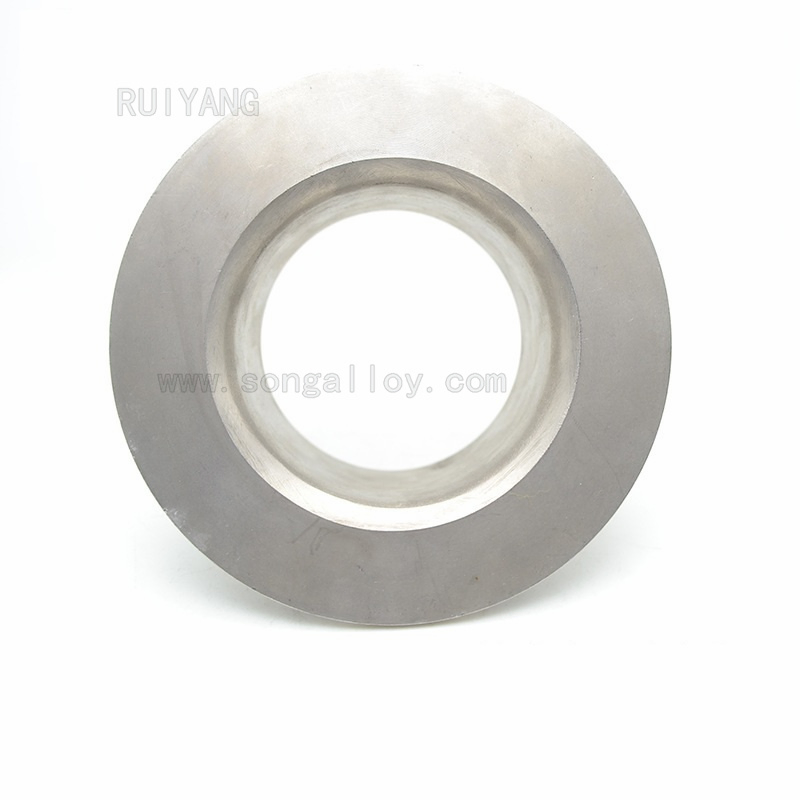

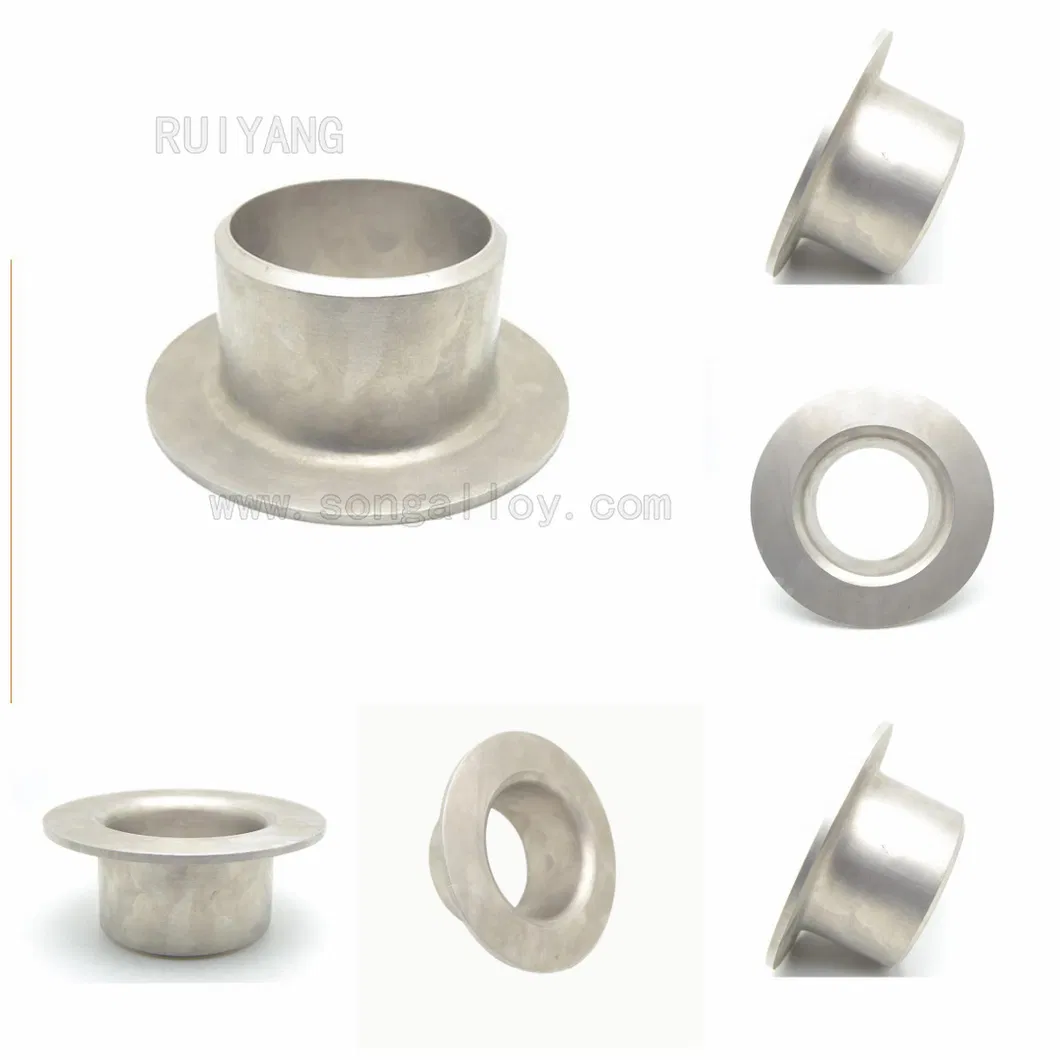

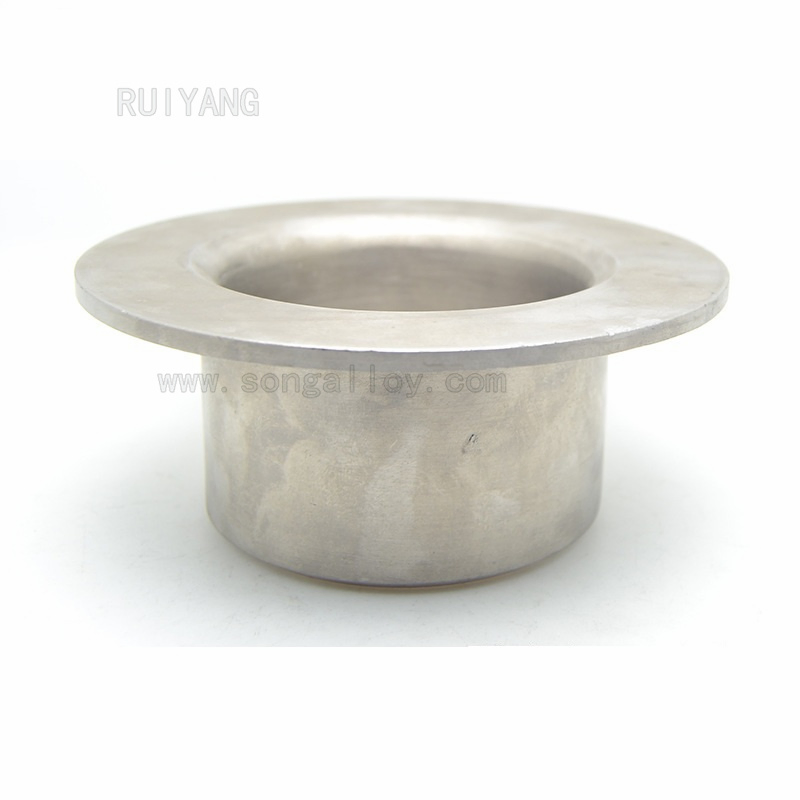

ASTM B363 Gr. 7 Pipe Fitting Titanium Metal Stub End

Pipe fittings Applications
Chemical industry, water, oil and gas transportation, electric power, construction, Natural gas, chemical, petroleum, ship building, marine, paper making, metallurgy, electric, power, boiler, etc.

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)											MECHANICAL PROPERTIES (min)
ASTM B363	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
ASTM B363	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15
