API 4" Fmc Spm Type Hammer Unions 1502

The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 300, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002, figure 2202

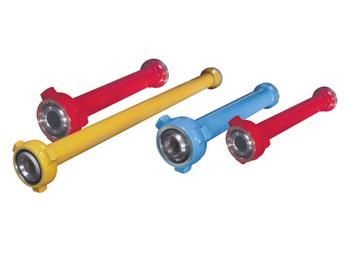

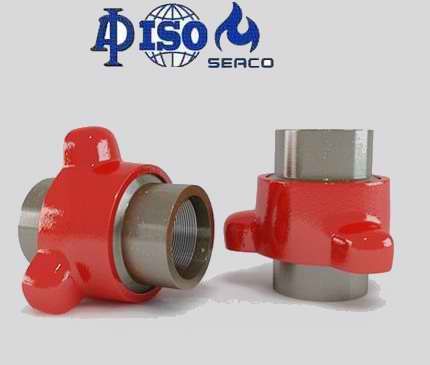

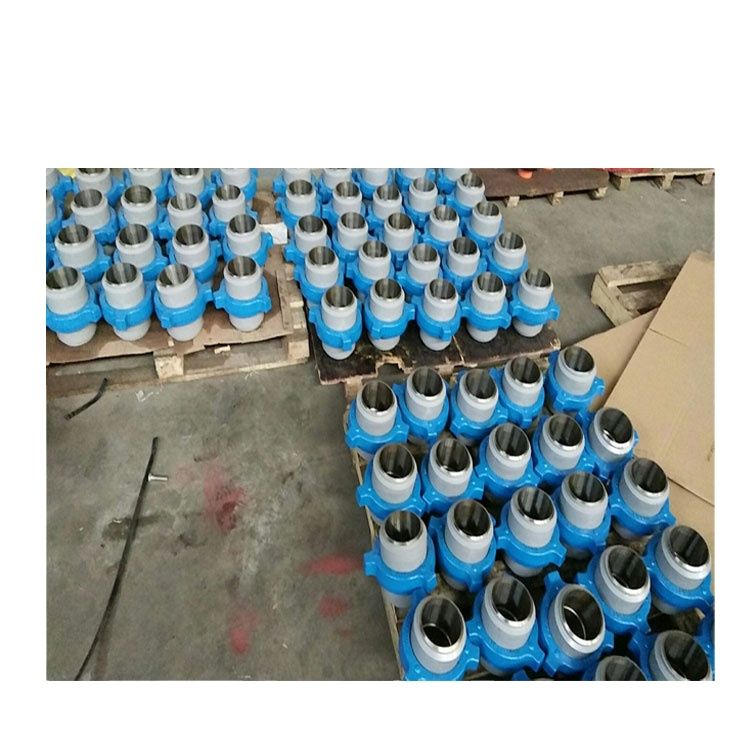

Hammer Union

We can provide various hammer unions based on the introduced technologies from other country,including thread connection type,welding type and H2S service unions.1"-6" and CWP of 1000psi-20,000psi unions are available.For easy identification,unions with different pressure ratings will be painted in different colors,and there are evident marks indicating size,connecting mode and pressure ratings.

Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion.Different pressures and applications have different sealing method.

Fast Installation

Wherever they are,wing nuts and right ACME will ensure quick installation or dismantling without special tools.

Highly Interchangeable

All unions are made in American system,and can be interchanged with products in international market.Seal rings are fully interchangeable with equivalent products;Marks of size and pressure in wing nuts are formed in die-forging model,same as international products.


Figure 100 Hammer Union

Nominal pipe Size:2", 2-1/2", 3", 4" , 6" , 8";

Pressure Rating:1000psi cwp;1500 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Manifold and line connections.

Figure 200 Hammer Union

Nominal pipe Size:1", 1-1/4", 1-1/2",2", 2-1/2",3", 4";

Pressure Rating:2000psi cwp;3000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:General-service manifolds and lines.

Figure 206 Hammer Union

Nominal pipe Size:1", 2", 3",4",6",8", 10";

Pressure Rating:2000psi cwp;3000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Manifold and line connections, suction service, and corrosion service.

Figure 400 Hammer Union

Nominal pipe Size:2", 2-1/2", 3",4",6",8",10",12";

Pressure Rating:4000psi cwp;6000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Manifold and line connections, pump suction, and mud service.

Figure 600 Hammer Union

Nominal pipe Size:1", 2", 3", 4";

Pressure Rating:6000psi cwp;9000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Steam service, boiler connections, manifold, and line connections for production, drilling, and well servicing.

Figure 602 Hammer Union

Nominal pipe Size:1", 2", 3", 4";

Pressure Rating:6000psi cwp;9000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Manifold and line connections and mud service.

Figure 1002 Hammer Union

Nominal pipe Size:1", 2", 3", 4",5",6";

Pressure Rating: 1" to 4" 10000psi cwp;15000 psi test; 5" to 6" 7500psi cwp;12000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Cementing, fracturing, acidizing, testing, and choke and kill lines.

Figure 1003 Hammer Union

Nominal pipe Size:2", 3", 4",5";

Pressure Rating: 2" to 3" 10000psi cwp;15000 psi test; 4" to 5" 7500psi cwp;12000 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:For high-pressure connections where lines can't be aligned.

Figure 1502 Hammer Union

Nominal pipe Size:2", 3", 4";

Pressure Rating: 15000psi cwp;22500 psi test;

Connections Type: pipeline thread, tubing thread, butt-weld;

Component Parts: Nut, Male Sub, Female Sub, Seal Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Cementing, fracturing, acidizing, testing, and choke and kill lines.

Figure 2002 Hammer Union

Nominal pipe Size:2", 3";

Pressure Rating: 20000psi cold working pressure;

Connections Type: butt-weld;

Component Parts: Detachable Nut, Male Sub, Female Sub, Seal Ring, Retainer Segment, Retainer Ring;

Sour Service Models to NACE MR-01-75.

Recommended service:Cementing, fracturing, acidizing, testing, and choke and kill lines.
