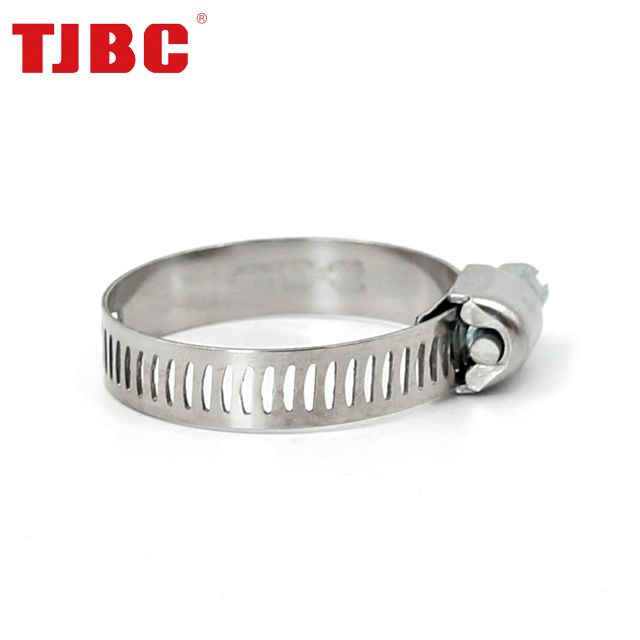

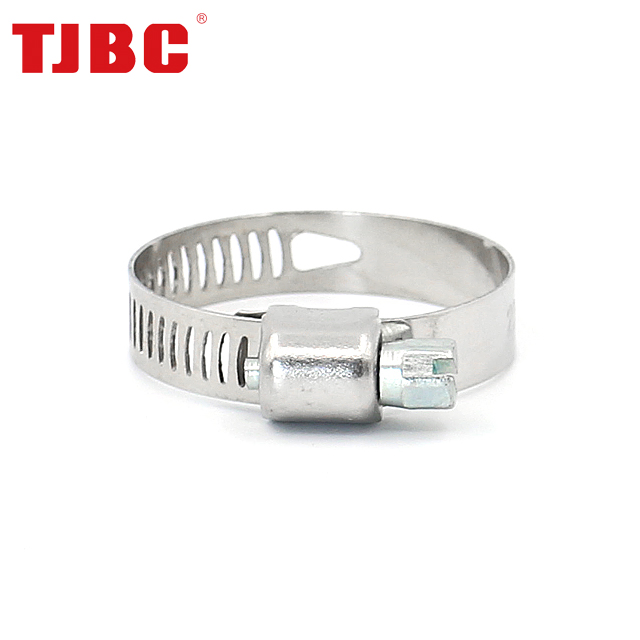

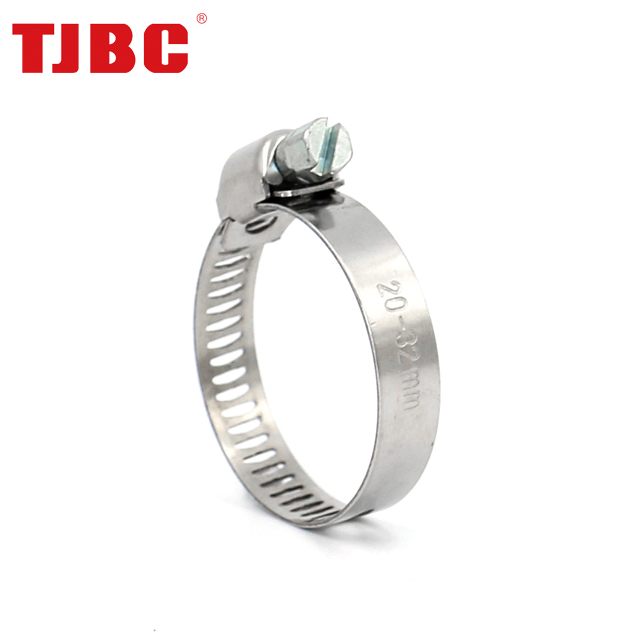

8mm Micro Perforated Adjustable W5 Worm Gear Pipe Clip American Type Stainless Steel Hose Clamp for Automotive, 18-32mm Bandwidth (0.69"-1.25")
XM01 (8mm micro perforeated clamp) SizeItemNO//SAE nomminchW1W2W4W5pcs/bagpcs/carton46-160.25"-0.62"XM01A4XM01B4XM01D4XM01E41002500611-200.44"-0.78"XM01A6XM01B6XM01D6XM01E61002500813-230.5"-0.91"XM01A8XM01B8XM01D8XM01E810010001014-270.56"-1.06"XM01A10XM01B10XM......
Send Inquiry
Product Description
| XM01 (8mm micro perforeated clamp) | ||||||||
| Size | ItemNO | / | / | |||||
| SAE no | mm | inch | W1 | W2 | W4 | W5 | pcs/bag | pcs/carton |
| 4 | 6-16 | 0.25"-0.62" | XM01A4 | XM01B4 | XM01D4 | XM01E4 | 100 | 2500 |
| 6 | 11-20 | 0.44"-0.78" | XM01A6 | XM01B6 | XM01D6 | XM01E6 | 100 | 2500 |
| 8 | 13-23 | 0.5"-0.91" | XM01A8 | XM01B8 | XM01D8 | XM01E8 | 100 | 1000 |
| 10 | 14-27 | 0.56"-1.06" | XM01A10 | XM01B10 | XM01D10 | XM01E10 | 100 | 1000 |
| 12 | 18-32 | 0.69"-1.25" | XM01A12 | XM01B12 | XM01D12 | XM01E12 | 50 | 1000 |
| Material | Band | Housing | Screw | suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | 2.1Nm |
| W2 | AISI 203SS/201SS/301SS | AISI 203SS/201SS/301SS | Zinc plated steel | |
| W2B | AISI 201SS | Zinc plated steel | Zinc plated steel | |
| W4 | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS |
