              3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline
              • 3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline
              • 3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline
              • 3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline
              • 3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline

              3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline

              3A Certified Sanitary DIN 11851 Union for Food Beverage PipelineTechnical SpecificationProduct Name:ISO/DIN Union with Male AdaptorBody Material:ASTM304/136L,1.4301/1.4404Size:DN25-DN150, 1"-6" or as requiredConnection:ThreadedFinish:Ra<0.8um Application:to the stainless steel pipeling ......

              Send Inquiry

              Product Description

              3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline
              Technical Specification
              Product Name:ISO/DIN Union with Male Adaptor
              Body Material:ASTM304/136L,1.4301/1.4404
              Size:DN25-DN150, 1"-6" or as required
              Connection:Threaded
              Finish:Ra<0.8um
              Application:to the stainless steel pipeling system and union
              Standard:DIN/ISO
              Certificate:CE, ISO9001/2008,3A
              Application scope: Dairy, food, beer, beverage, pharmacy, cosmetic, etc
              Packaging Details:Shrink wrapped - carton - wooden case . Or as per the request of customers
              Delivery details:Depend on quantity,usually within
              3A Certified Sanitary DIN 11851 Union for Food Beverage Pipeline

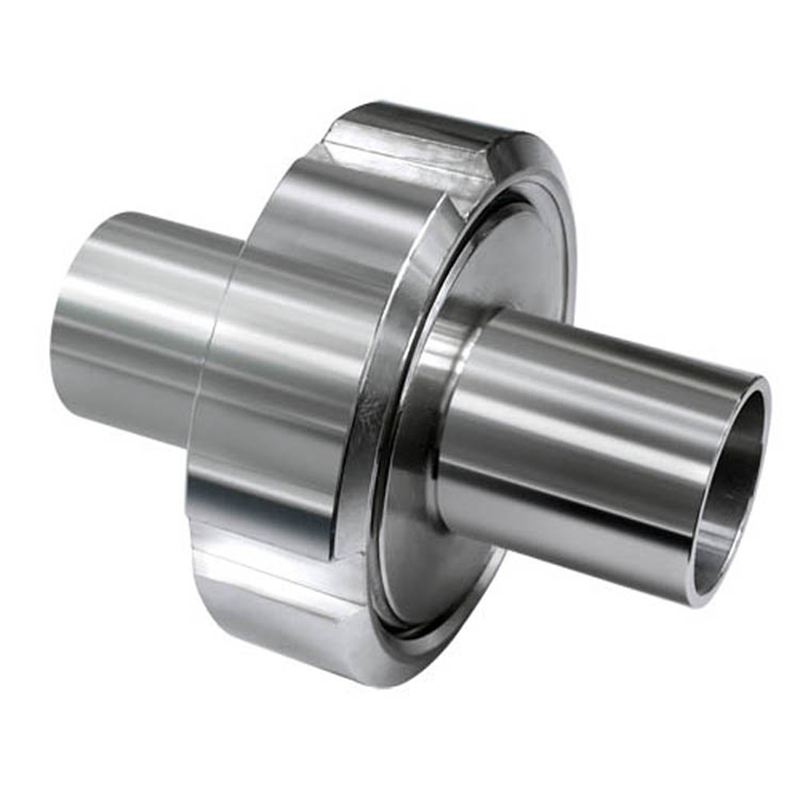

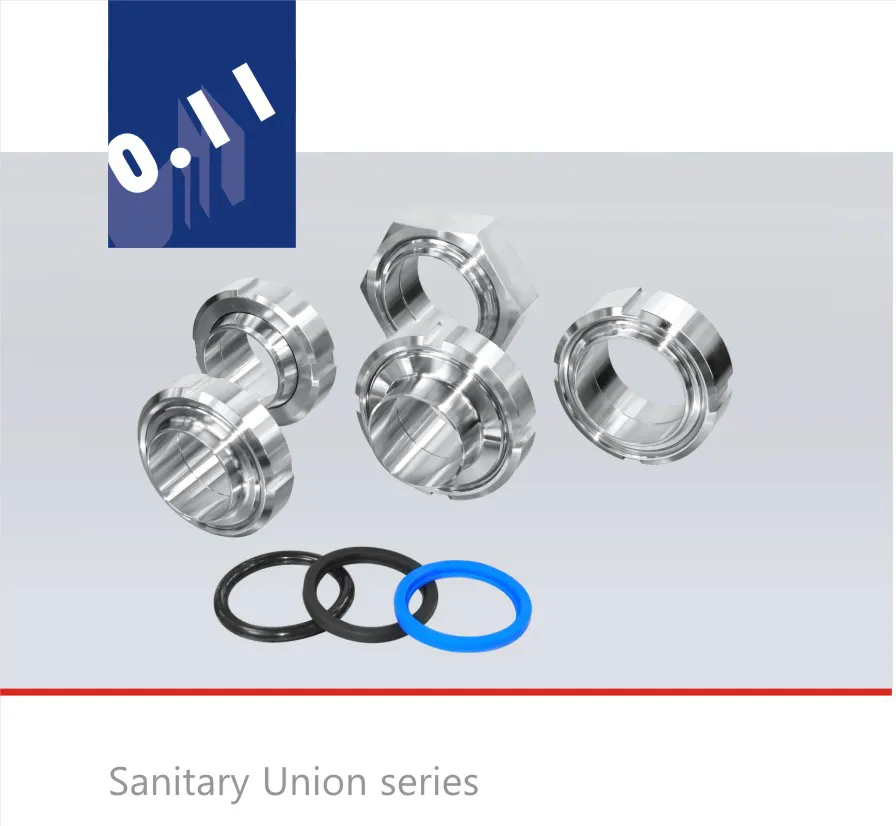

              Stainless steel sanitary union
              1)Size: DN25-DN150, 1"-6" or as required
              2)Standard: DIN, SMS, ISO, 3A, RJT, IDF
              3) Material
              Male & Liner: AISI304/316L
              Nut: AISI 304
              Gasket: EPDM, Silicon
              Union Shape: Round & Hexagon
              5) One Full set: Nut, Liner. Male part and gasket
              6) Technical data
              Working Pressure: 4-8Bar
              Working temperture: -8 - 95 degree
              7) Delivery Lead Time: Within10 days once order confirmed
              8) Sample Policy: Sample is free, Freight cost should be buyer's, and we will consider to deduct the sample charge from first quantity order.
              9)Applicable Field: Milk, Beer, Drinks Machinery, Food Processing, Medicine Machinery,
              Wenzhou FuTe valve & pipe fittings welcome you. Our products are in high quality and reasonable price.
