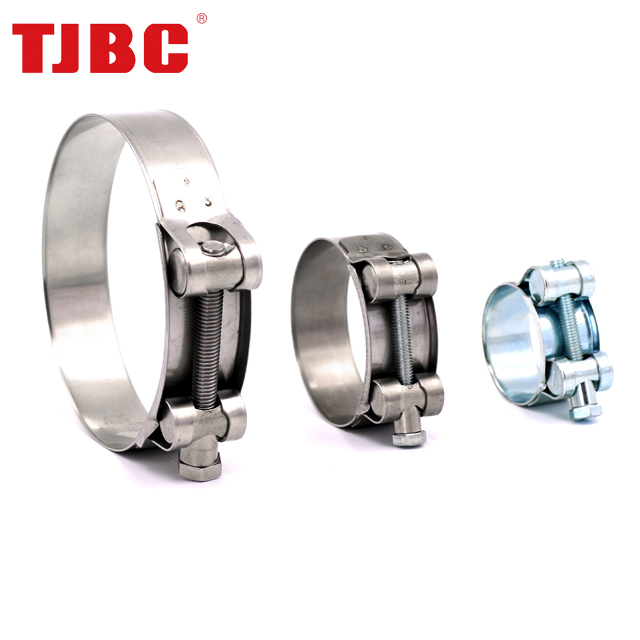

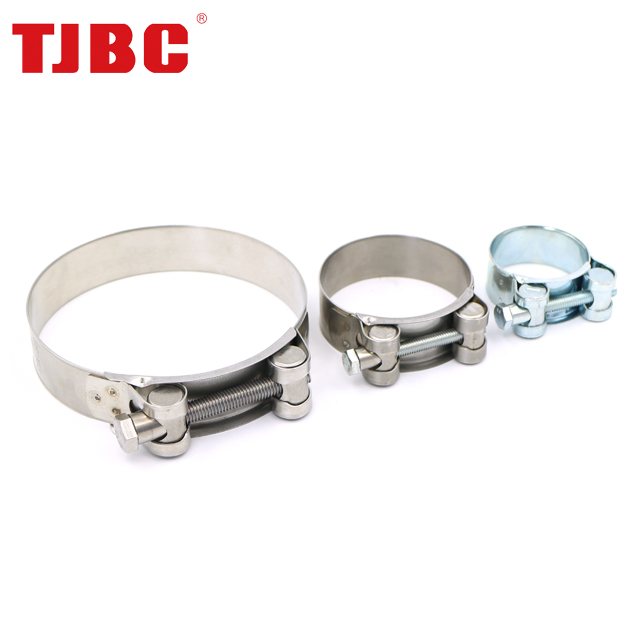

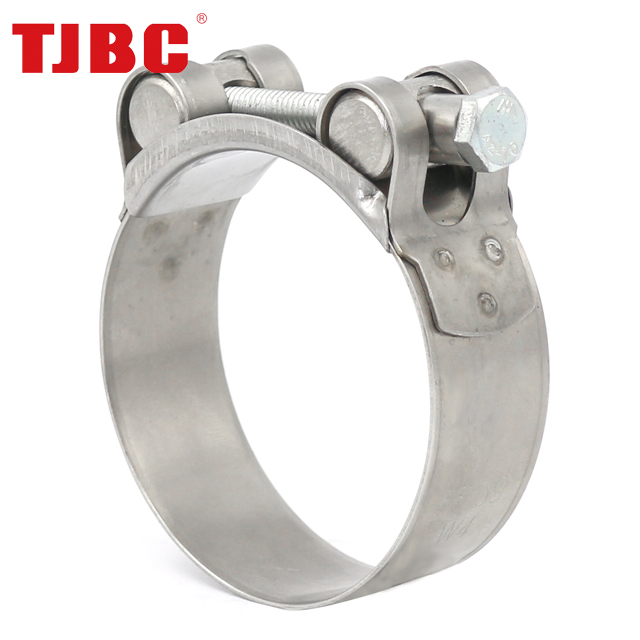

China 304ss Stainless Steel Adjustable High Pressure European Type Heavy Duty Single Bolt Super Power Unitary Hose Clamp for Automotive, 64-67mm

Product Description

QL03 (Unitary clamp)
Size mm	screw	W1		W2&W4&W5			suggested install torque	/ pcs/carton
Size mm	screw	Item no.	bandwidth mm	Item no.		bandwidth mm	suggested install torque	/ pcs/carton
17-19	M5×40	QL03A1719	0.6×18	QL03B1719	QL03D1719	0.6×18	4.5Nm	200
20-22	M5×40	QL03A2022		QL03B2022	QL03D2022			200
23-25	M5×40	QL03A2325		QL03B2325	QL03D2325			200
26-28	M5×40	QL03A2628		QL03B2628	QL03D2628			200
29-31	M6×55	QL03A2931	0.8×20	QL03B2931	QL03D2931	0.6×20	9Nm	200
32-35	M6×55	QL03A3235		QL03B3235	QL03D3235			200
36-39	M6×55	QL03A3639		QL03B3639	QL03D3639			200
40-43	M6×55	QL03A4043		QL03B4043	QL03D4043			100
44-47	M6×55	QL03A4447	1.2×22	QL03B4447	QL03D4447	0.8×22		100
48-51	M6×55	QL03A4851		QL03B4851	QL03D4851			100
52-55	M6×55	QL03A5255		QL03B5255	QL03D5255			100
56-59	M6×55	QL03A5659		QL03B5659	QL03D5659			100
60-63	M6×55	QL03A6063		QL03B6063	QL03D6063			100
64-67	M8×70	QL03A6467	1.5×22	QL03B6467	QL03D6467		18Nm	100
68-73	M8×70	QL03A6873	1.5×24	QL03B6873	QL03D6873	0.8×24		100
74-79	M8×70	QL03A7479		QL03B7479	QL03D7479			50
80-85	M8×70	QL03A8085		QL03B8085	QL03D8085			50
86-91	M8×70	QL03A8691		QL03B8691	QL03D8691			50
92-97	M8×70	QL03A9297		QL03B9297	QL03D9297			50
981-03	M8×70	QL93A8103		QL93B8103	QL93D8103			50
104-112	M8×80	QL103A4112		QL103B4112	QL103D4112			50
113-121	M8×80	QL113A3121		QL113B3121	QL113D3121			50
122-130	M8×80	QL123A2130		QL123B2130	QL123D2130			50
131-139	M10×90	QL133A1139	1.7×26	QL133B1139	QL133D1139	1.0×26	29Nm	50
140-148	M10×90	QL143A0148		QL143B0148	QL143D0148			50
149-161	M10×110	QL143A9161		QL143B9161	QL143D9161			50
162-174	M10×110	QL163A2174		QL163B2174	QL163D2174			25
175-187	M10×110	QL173A5187		QL173B5187	QL173D5187			25
188-200	M10×110	QL183A8200		QL183B8200	QL183D8200			25
201-213	M10×110	QL203A1213		QL203B1213	QL203D1213			25
214-226	M10×110	QL213A4226		QL213B4226	QL213D4226			25
227-239	M10×110	QL223A7239		QL223B7239	QL223D7239			25
240-252	M10×110	QL243A0252		QL243B0252	QL243D0252			25

Material	Band	bridge	Trunnion	sleeving	bolt
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 430SS	AISI 430SS	Zinc plated steel	Zinc plated steel	Zinc plated steel
W4	AISI 301ss/304ss	AISI 301ss/304ss	AISI 301ss/304ss	AISI 301ss/304ss	A2-70
W5	AISI 316SS	AISI 316SS	AISI 316SS	AISI 316SS	A4-70
